322870 Series

Catalog

TERMINAL,SOLIS R 2 5/16 90DEG

Part	Termination	Thickness	Thickness	Stud/Tab Size	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Wire Gauge	Insulation	Contact Material	Terminal Type	Features	Length - Overall [x]	Length - Overall [x]

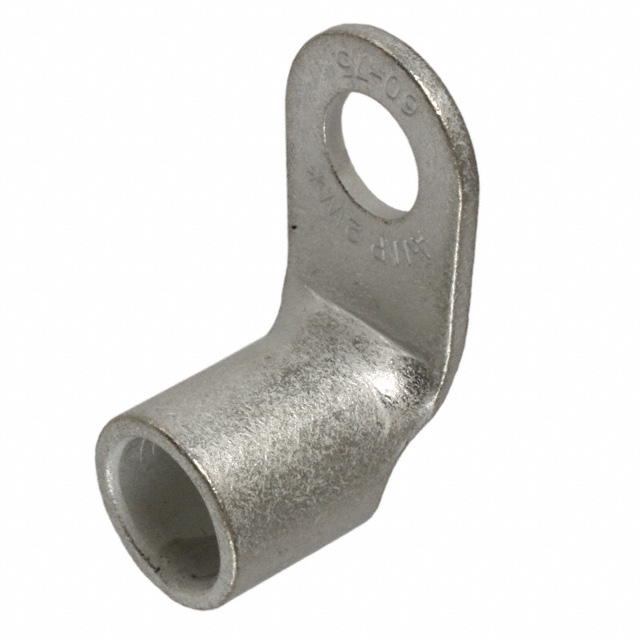

TE Connectivity Raychem Cable Protection 322870-1	Crimp	1.78 mm	0.07 in	0.3125 Stud	Free Hanging (In-Line) Right Angle	0.625 in	15.88 mm	Tin	2 AWG	Non-Insulated	Copper	Circular

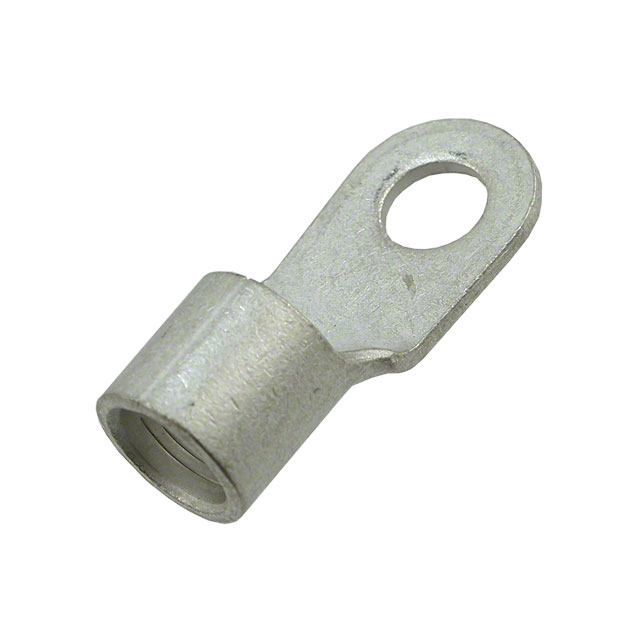

TE Connectivity Raychem Cable Protection 8-322870-3	Crimp	1.78 mm	0.07 in	0.3125 Stud	Free Hanging (In-Line)	0.625 in	15.88 mm	Tin	2 AWG	Non-Insulated	Copper	Circular	Brazed Seam Serrated Termination	38.79 mm	1.527 in
