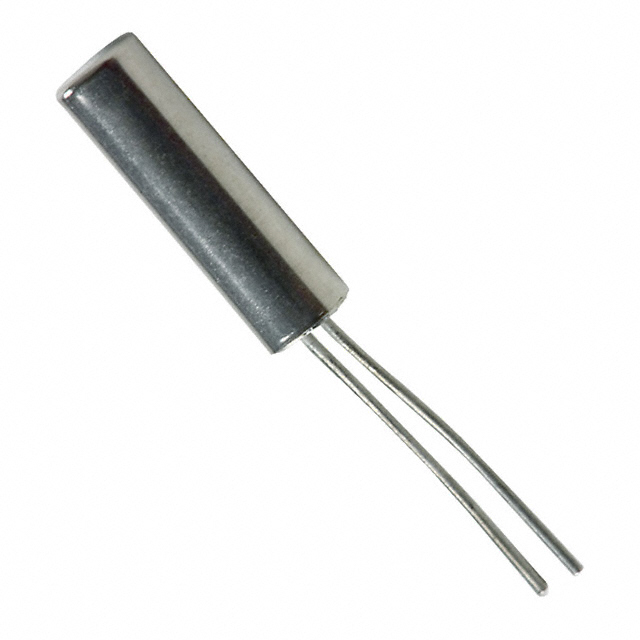

ECS-3X10X Series

Manufacturer: ECS Inc.

Catalog

CRYSTAL 6.0000MHZ 18PF TH

Part	Operating Mode	Package / Case	Frequency Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	Frequency Stability	Type	Mounting Type	Load Capacitance	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
ECS Inc. ECS-60-18-10X	Fundamental	Cylindrical Can Radial	50 ppm	-10 °C	60 °C	6 MHz	50 ppm	MHz Crystal	Through Hole	18 pF	100 Ohms	0.413 in	10.5 mm	0.126 in	3.2 mm	0.413 "	10.5 mm
ECS Inc. ECS-73-18-10	Fundamental	Cylindrical Can Radial	50 ppm	-10 °C	60 °C	7.3728 MHz	50 ppm	MHz Crystal	Through Hole	18 pF	100 Ohms	0.413 in	10.5 mm	0.126 in	3.2 mm	0.413 "	10.5 mm
