D95022 Series
Manufacturer: Harwin Inc.
Beta
⌘K

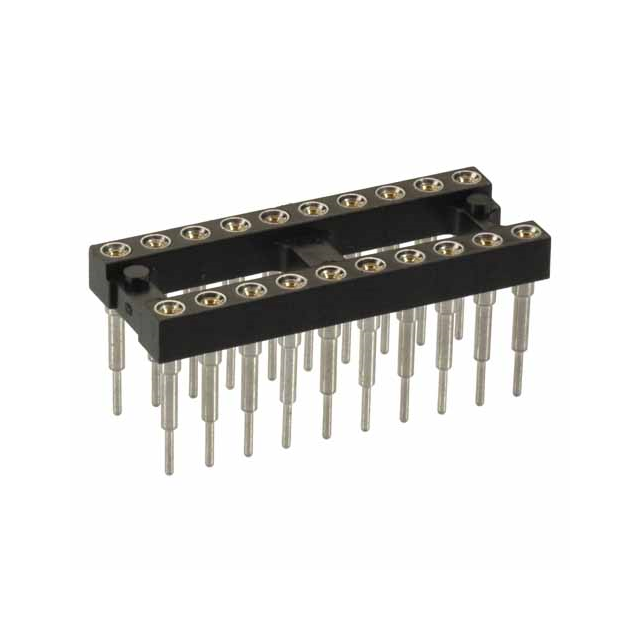

CONN IC DIP SOCKET 22POS GOLD
| Part | Termination Post Length [x] | Termination Post Length [x] | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Mounting Type | Termination | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Housing Material | Features | Contact Finish - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Type | Type | Type | Pitch - Post | Pitch - Post | Contact Material - Post [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 3.2 mm | 0.126 in | UL94 V-0 | 10 mOhm | 1 A | 11 | 22 | 2 | Through Hole | Solder | Gold | 0.1 " | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Elevated Open Frame | Tin | 29.5 µin | 0.75 µm | 7.62 mm | 0.3 in | DIP | 0.1 in | 2.54 mm | Brass | -55 C | 125 °C | Beryllium Copper | 5 µm | 196.9 µin |
