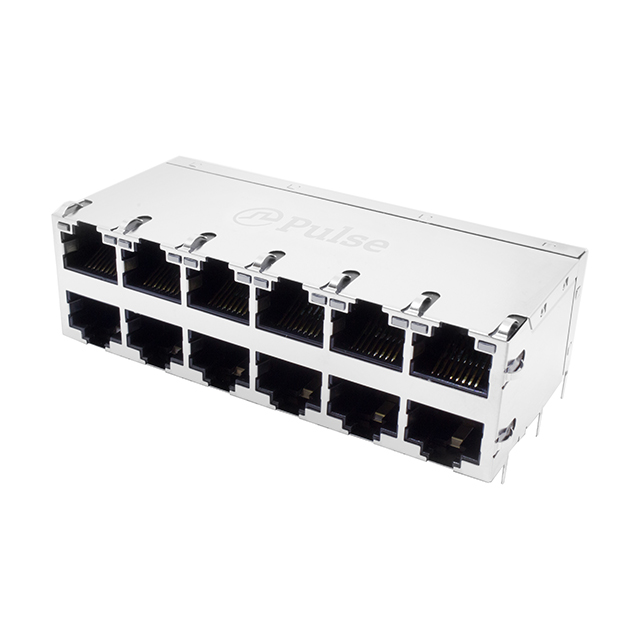

J0B Series
Manufacturer: Pulse Electronics
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 2X6 2.5GBASE-T 4P POE 75W
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Shield Material | Connector Type | Termination | Number of Cores per Jack | Number of Rows [custom] | Contact Finish | Shielding | Contact Material | Orientation | Number of Ports | Features | Height Above Board | Height Above Board | LED Color | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Tab Direction | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 50 µin | 1.27 µm | Thermoplastic | Copper Alloy | RJ45 | Solder | 8 | 2 | Gold | EMI Finger Shielded | Copper Alloy | 90 ° | 12 | Board Guide | 25.46 mm | 1.002 " | Green Yellow | 2.5G Base-T AutoMDIX | 70 °C | 0 °C | Up and Down | Through Hole |
