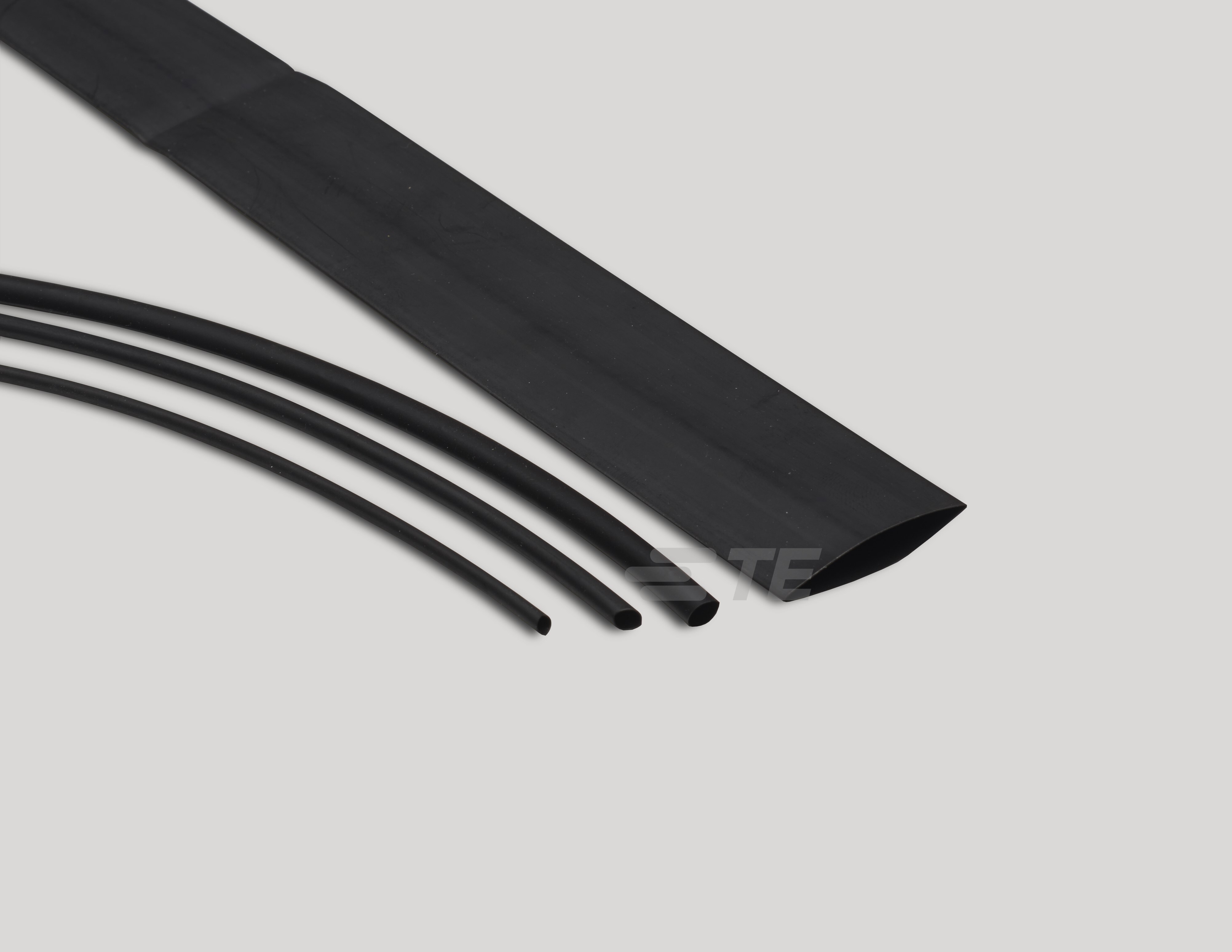

RAYCHEM TUGA-GP Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TUGA-GP-3/1.5-0-SP
| Part | Type | Shrinkage Ratio [Min] | Shrinkage Ratio [Max] | Color | Recovered Wall Thickness | Recovered Wall Thickness | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Length | Length | Material | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Shrink Temperature | Shelf Life | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | |||||||||||||||||||||
 TE Connectivity AMP Connectors | Tubing Semi-Flexible | 1 | 2 | Black | 0.51 mm | 0.02 in | 2.4 mm | 0.094 in | 1 m | 3.28 ft | Polyolefin (PO) Irradiated | 5 mm | 0.197 " | 85 °C | 144 Months | 0 °C | 35 °C | 32 °F | 95 °F | -55 C | 125 °C |
TE Connectivity AMP Connectors | Tubing Semi-Flexible | 1 | 2 | Black | 0.58 mm | 0.023 " | 4.8 mm | 0.189 " | 1 m | 3.28 ft | Polyolefin (PO) Irradiated | 9.5 mm | 0.374 " | 85 °C | 144 Months | 0 °C | 35 °C | 32 °F | 95 °F | -55 C | 125 °C |
