MEAS PT5 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PT5A-200-N34-UP-10K-MC4: CTO-11500000-23

Part	Output Signal	Termination Style	Technology	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Output	Linear Range [Min]	Linear Range [Max]	Linear Range [Min]	Resistance	Package / Case	For Measuring	Mounting Type	Output [Min]	Output [Max]	Linear Range [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Resistance Tolerance	Termination	Cable Length	Number of Positions	Connector - Sensor
TE Connectivity AMP Connectors PT5A-200-N34-UP-10K-MC4	Clockwise Increase	Connector	Resistive	30 VAC/DC	90 °C	-40 C	String Potentiometer	Analog Voltage	0 "	200 "	0 mm	10000 Ohms	Module	Linear Position	Chassis Mount

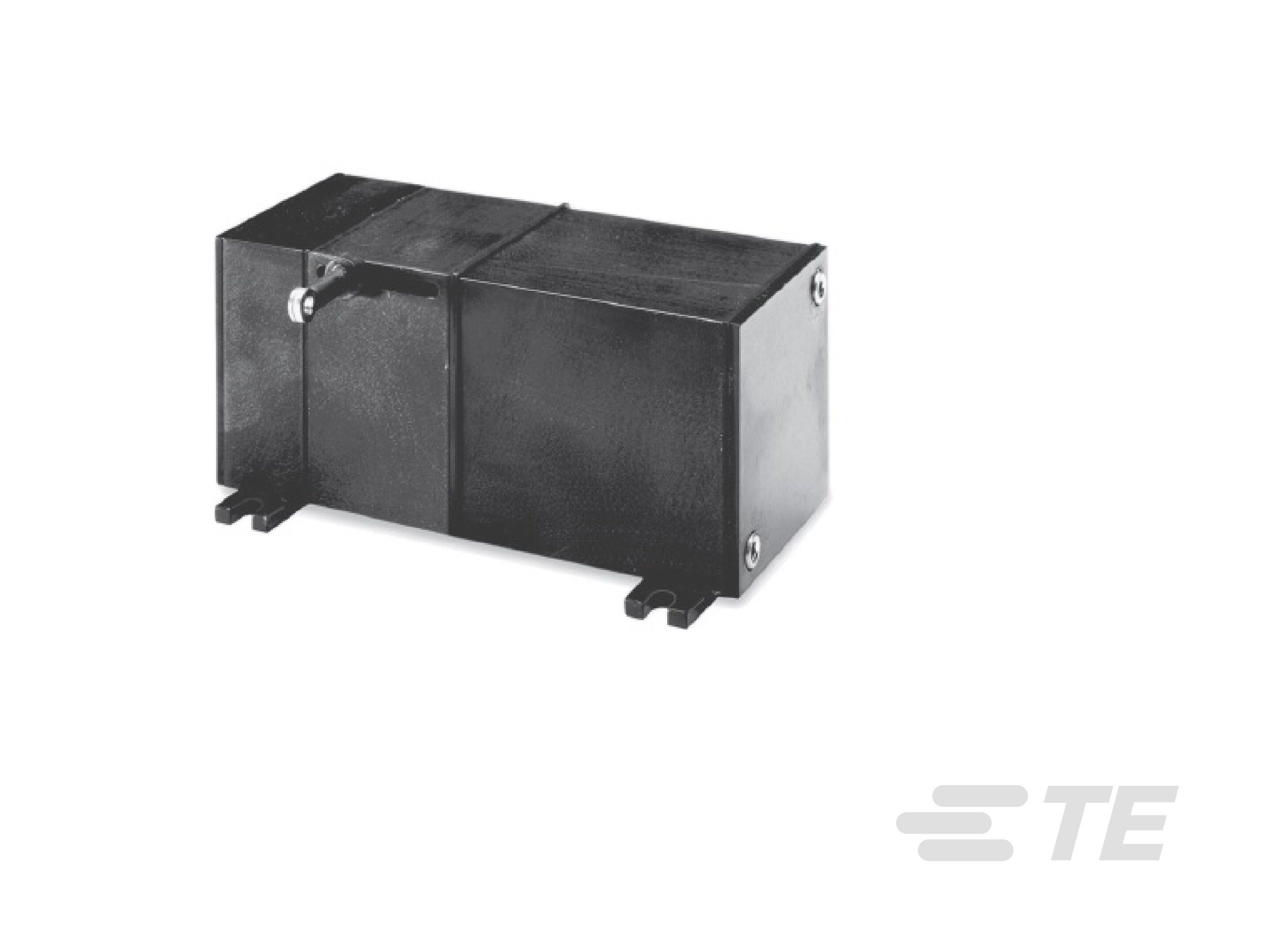

TE Connectivity AMP Connectors PT5DC-15-V62-FR-Z10-M6	Clockwise Increase	Cable			90 °C	-40 C	String Potentiometer		0 "	15 "	0 mm		Module	Linear Position	Chassis Mount	0 mV	10 V	381 mm
TE Connectivity AMP Connectors PT5MA-10-N34-FR-420E-MC4
TE Connectivity AMP Connectors PT5MA-150-N34-DN-420R-C25	Clockwise Increase	Cable	Resistive		90 °C	-40 C	String Potentiometer						Module	Linear Position	Chassis Mount	4 mA	20 mA		8 V	34 VDC

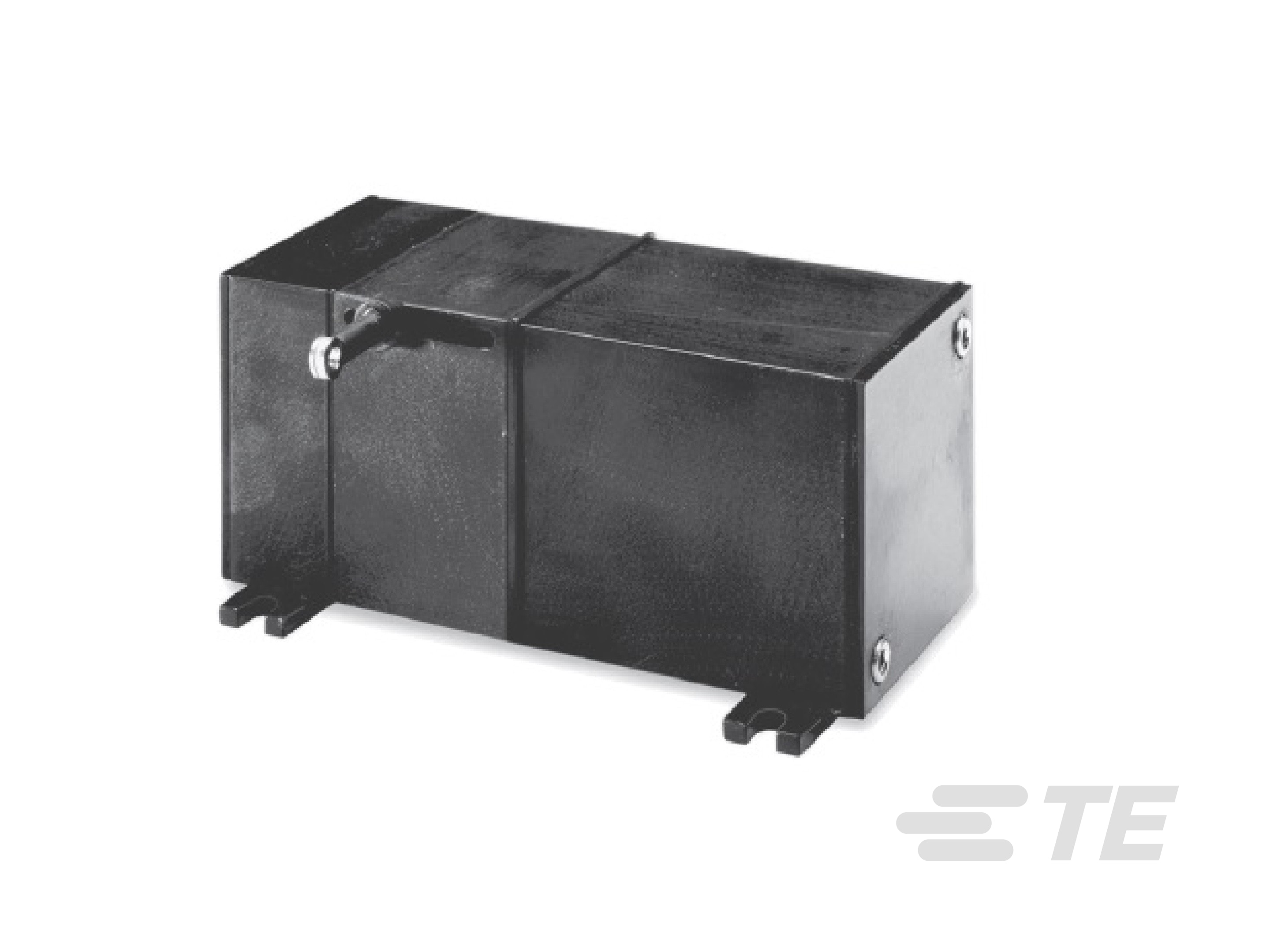

TE Connectivity AMP Connectors PT5600-50-N34-UP-S02
TE Connectivity AMP Connectors PT5600-250-N34-FR-F01
TE Connectivity AMP Connectors PT5A-100-S47-FR-10K-M6M	Clockwise Increase	Connector	Resistive	30 VAC/DC	90 °C	-40 C	String Potentiometer	Resistive				10000 Ohms	Module	Linear Position	Chassis Mount						10%
TE Connectivity AMP Connectors PT5MA-150-S47-UP-420E-M6M
TE Connectivity AMP Connectors PT5A-60-S47-FR-10K-MC4	Clockwise Increase	Connector	Resistive	30 VAC/DC	90 °C	-40 C	String Potentiometer	Resistive	0 "	60 "	0 mm	10000 Ohms	Module	Linear Position	Chassis Mount			1524 mm			10%
TE Connectivity AMP Connectors PT5DC-80-S47-UP-Z10-MC4																						Wire Leads	3.5 m	4	Circular
