PR20B06HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

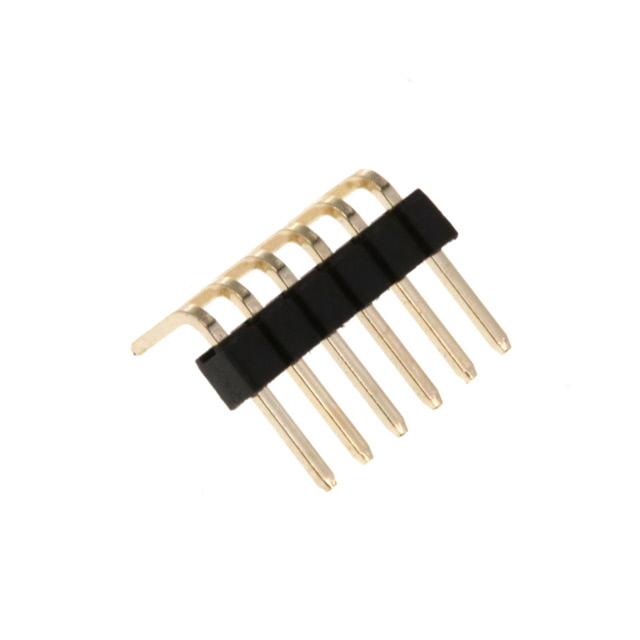

PIN HEADER, THR, SINGLE ROW, 1.2
| Part | Number of Positions | Contact Length - Post [custom] | Contact Length - Post | Number of Rows | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Shape | Mounting Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Insulation Color | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Shrouding | Contact Finish - Mating | Contact Type | Insulation Material | Number of Positions Loaded | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 6 | 0.11 in | 2.79 mm | 1 | Header | 1.27 mm | 0.05 in | Flash | Square | Right Angle Through Hole | Push-Pull | -40 C | 105 ░C | Copper Zinc | Black | 3 mm | 0.118 in | 0.059 in | 1.5 mm | Unshrouded | Gold | Male Pin | Polyethylene | All | Solder |
