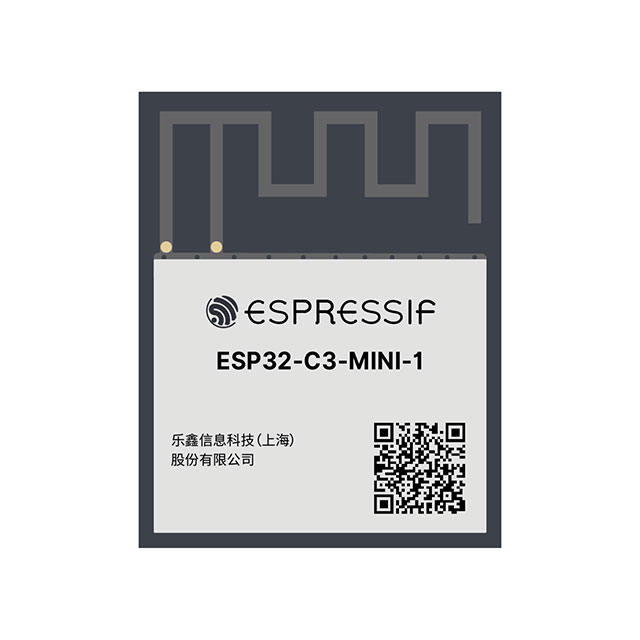

ESP32-C3 Series
Manufacturer: Espressif Systems
Beta
⌘K
RF TXRX MOD BT WIFI PCB TH SMD
| Part | Frequency [Min] | Frequency [Max] | Sensitivity | Utilized IC / Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - Transmitting | Voltage - Supply [Max] | Voltage - Supply [Min] | Power - Output | Serial Interfaces | RF Family/Standard | Mounting Type | Current - Receiving | Package / Case | Protocol | Data Rate | Antenna Type | Memory Size | Current - Receiving [Min] | Current - Receiving [Max] | Current - Transmitting [Min] | Current - Transmitting [Max] | Memory Size | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Espressif Systems | 2.412 GHz | 2.484 GHz | -98 dBm | ESP32-C3FH4 | -40 C | 105 ░C | 350 mA | 3.6 V | 3 V | 20.5 dBm | GPIO I2C I2S SPI UART | Bluetooth WiFi | Surface Mount | 84 mA | Module | 802.11b/g/n Bluetooth v5.0 | 2 MBd | PCB Trace | 384kB ROM 400kB SRAM 4MB Flash | ||||||
Espressif Systems | 2.412 GHz | 2.484 GHz | -104 dBm | ESP32-C3FN4 | -40 ¯C | 85 C | 3.6 V | 3 V | 20.5 dBm | ADC GPIO I2C I2S JTAG PWM SPI UART USB | Bluetooth WiFi | Surface Mount | 53-SMD Module | 802.11b/g/n Bluetooth v5.0 | 150 Mbps | PCB Trace | 384kB ROM 400kB SRAM 4MB Flash | 82 mA | 84 mA | 290 mA | 350 mA | ||||
 Espressif Systems | 2.412 GHz | 2.484 GHz | -104 dBm | ESP32-C3FN4 | -40 ¯C | 85 C | 3.6 V | 3 V | 20.5 dBm | ADC GPIO I2C I2S JTAG PWM SPI UART USB | Bluetooth WiFi | Surface Mount | 53-SMD Module | 802.11b/g/n Bluetooth v5.0 | 150 Mbps | 82 mA | 84 mA | 290 mA | 350 mA | 4 MB 384 kB 408 kB | |||||
Espressif Systems | -104 dBm | ESP32-C3FH4 | -40 C | 105 ░C | 3.6 V | 3 V | 21 dBm | ADC GPIO I2C I2S JTAG PWM SPI UART | Bluetooth WiFi | Surface Mount | 53-SMD Module | 802.11b/g/n Bluetooth v5.0 | 150 Mbps | PCB Trace | 82 mA | 84 mA | 290 mA | 350 mA | 2.4 GHz |
