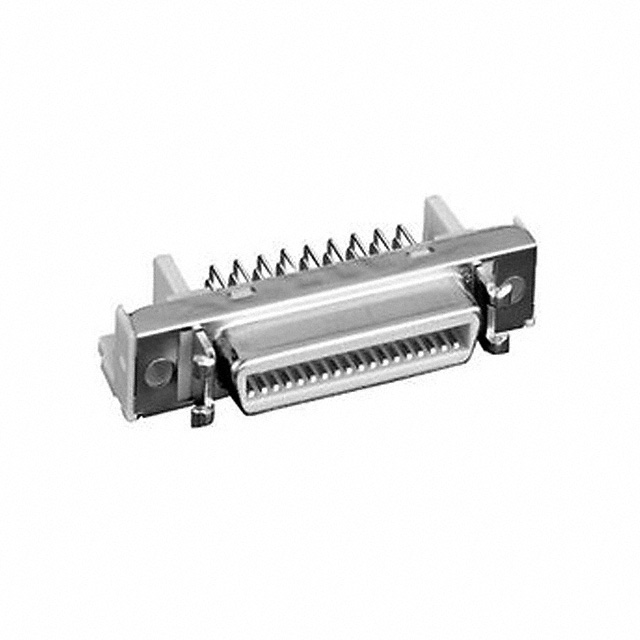

10236 Series

Catalog

CONN RCPT 36POS R/A SOLDER

Part	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Number of Positions	Connector Type	Contact Finish	Features	Mounting Type	Number of Rows [custom]	Termination	Connector Style
3M Electronic Specialty 10236-55F3JL	0.203 çm	8 µin	Latchblocks	36	Receptacle	Gold	Board Lock Shielded	Panel Mount Right Angle Through Hole	2	Solder	Outer Shroud Contacts

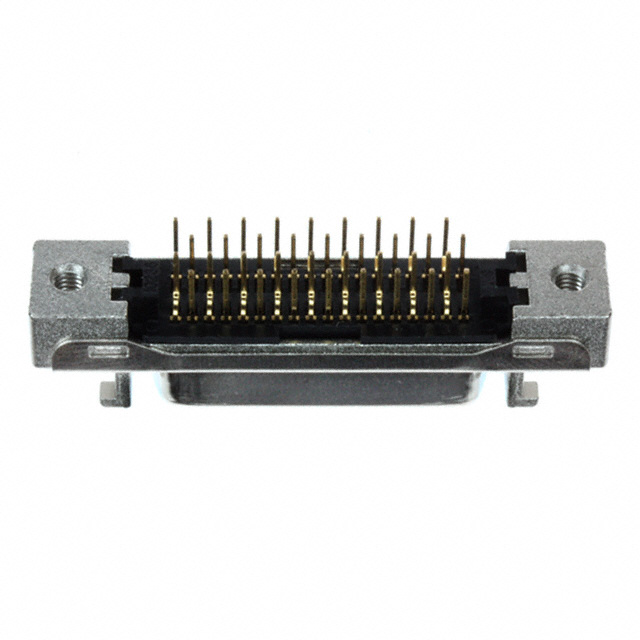

3M Electronic Specialty 10236-6212PC	0.76 Ám	30 Áin	Housing/Shell (M2.6)	36	Receptacle	Gold	Shielded	Panel Mount Through Hole	2	Solder	Outer Shroud Contacts
3M Electronic Specialty 10236-R21CS	0.76 Ám	30 Áin	Housing/Shell (M2.6)	36	Receptacle	Gold	Shielded	Panel Mount Through Hole	2	Press-Fit	Outer Shroud Contacts
3M Electronic Specialty 10236-2200PE	0.51 µm	20 µin	Housing/Shell (M2.6)	36	Receptacle	Gold	Board Guide Shielded	Surface Mount	2	Solder	Outer Shroud Contacts

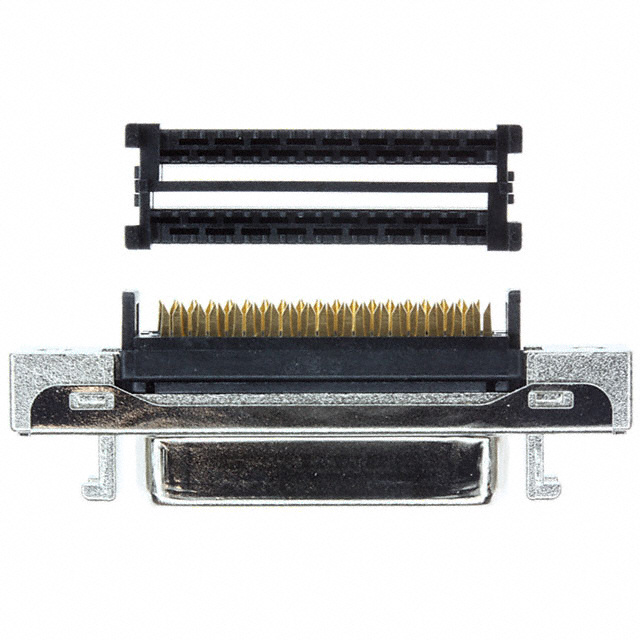

3M Electronic Specialty 10236-0210EC	0.76 Ám	30 Áin	Housing/Shell (M2.6)	36	Receptacle	Gold	Shielded	Free Hanging (In-Line)	2	IDC	Outer Shroud Contacts
3M Electronic Specialty 10236-55H3PC	0.76 Ám	30 Áin	Housing/Shell (4-40) Latchblocks	36	Receptacle	Gold	Board Lock Shielded	Panel Mount Right Angle Through Hole	2	Solder	Outer Shroud Contacts
3M Electronic Specialty 10236-55G3PL	0.203 çm	8 µin	Housing/Shell (M2.5) Housing/Shell (M2.6)	36	Receptacle	Gold	Board Lock Shielded	Panel Mount Right Angle Through Hole	2	Solder	Outer Shroud Contacts
3M Electronic Specialty 10236-R21TS	0.76 Ám	30 Áin	Housing/Shell (M2.6)	36	Receptacle	Gold	Shielded	Panel Mount Through Hole	2	Press-Fit	Outer Shroud Contacts
3M Electronic Specialty 10236-55G3PC	0.76 Ám	30 Áin	Housing/Shell (M2.5) Housing/Shell (M2.6)	36	Receptacle	Gold	Board Lock Shielded	Panel Mount Right Angle Through Hole	2	Solder	Outer Shroud Contacts
3M Electronic Specialty 10236-2200VE	0.51 µm	20 µin	Housing/Shell (M2.6)	36	Receptacle	Gold	Board Guide Shielded	Surface Mount	2	Solder	Outer Shroud Contacts
