PC-58 Series

Manufacturer: Ohmite

Catalog

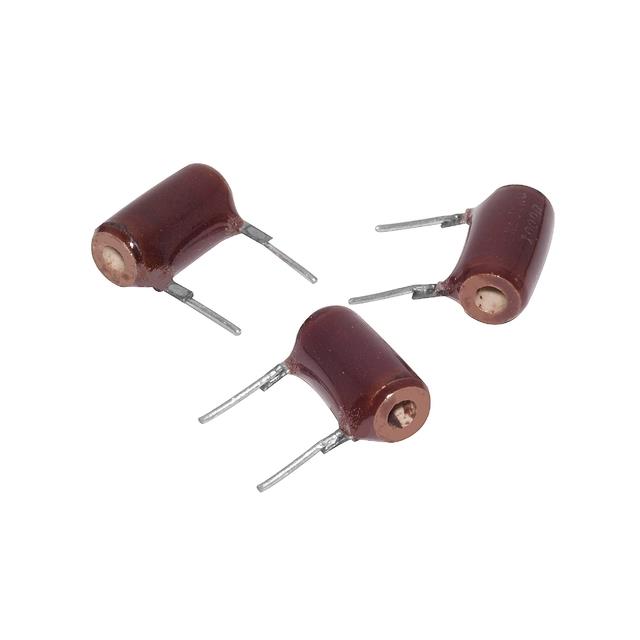

WIREWOUND RESISTORS - THROUGH HOLE 5.25WATT 150OHM 5% RADIAL

Part	Features	Package / Case	Number of Terminations [custom]	Supplier Device Package	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max]	Composition	Resistance	Power (Watts)	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]
Ohmite R5J150E	Flame Retardant Coating Safety	Radial	2	Radial Lead	5 %	13.11 mm	0.516 in	Wirewound	150 Ohms	5 W	260 ppm/°C
Ohmite R5J1K3E	Flame Retardant Coating Safety	Radial	2	Radial Lead	5 %	13.11 mm	0.516 in	Wirewound	1.3 kOhms	5 W	260 ppm/°C
Ohmite R3J1K2E	Flame Retardant Coating Safety	Radial	2		5 %		0.469 in	Wirewound	1.2 kOhms	3 W	260 ppm/°C	11.13 mm	0.438 in	7.95 mm	0.313 in	11.91 mm
Ohmite R3J820E	Flame Retardant Coating Safety	Radial	2		5 %		0.469 in	Wirewound	820 Ohms	3 W	260 ppm/°C	11.13 mm	0.438 in	7.95 mm	0.313 in	11.91 mm
Ohmite R3J3R0E	Flame Retardant Coating Safety	Radial	2	Radial Lead	5 %		0.469 in	Wirewound	3 Ohms	3 W	260 ppm/°C	11.13 mm	0.438 in	7.95 mm	0.313 in	11.91 mm
Ohmite R3J50RE	Flame Retardant Coating Safety	Radial	2		5 %		0.469 in	Wirewound	50 Ohms	3 W	260 ppm/°C	11.13 mm	0.438 in	7.95 mm	0.313 in	11.91 mm
Ohmite R5J75RE	Flame Retardant Coating Safety	Radial	2		5 %	13.11 mm	0.516 in	Wirewound	75 Ohms	5 W	260 ppm/°C
Ohmite R5J12KE	Flame Retardant Coating Safety	Radial	2	Radial Lead	5 %	13.11 mm	0.516 in	Wirewound	12 kOhms	5 W	260 ppm/°C
Ohmite R3J1K5E	Flame Retardant Coating Safety	Axial	2	Axial	5 %			Wirewound	1500 Ohms	3 W	260 ppm/°C	11.13 mm	0.438 in				0.313 "	7.95 mm
Ohmite R5J3K0E	Flame Retardant Coating Safety	Radial	2		5 %	13.11 mm	0.516 in	Wirewound	3 kOhms	5 W	260 ppm/°C
