300HBT2 Series

Catalog

CONN HEADER VERT 6POS 3MM

Part	Contact Type	Shrouding	Connector Type	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Insulation Color	Contact Shape	Number of Positions	Pitch - Mating	Pitch - Mating	Features	Insulation Height [z]	Insulation Height [z]	Style	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Number of Rows [custom]	Contact Finish - Post	Number of Positions Loaded	Fastening Type	Insulation Height	Insulation Height

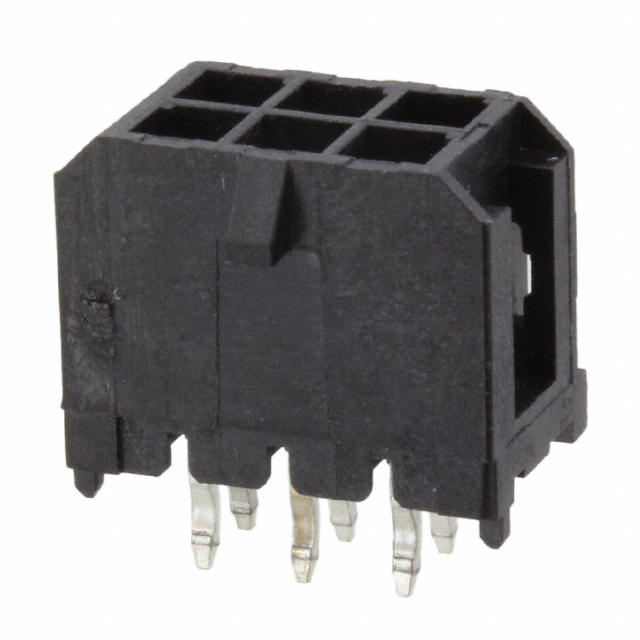

On Shore Technology Inc. 300HBT2V06	Male Pin	Shrouded - 4 Wall	Header	Kinked Pin Solder	Brass	-40 C	105 ░C	Through Hole	5 A	UL94 V-0	0.118 in	3 mm	Nylon 6T Polyamide (PA6T)	Black	Square	6	3 mm	0.118 in	Board Guide	0.39 in	9.91 mm	Board to Cable/Wire	0.126 "	3.2 mm	250 V	2	Tin	All	Locking Ramp

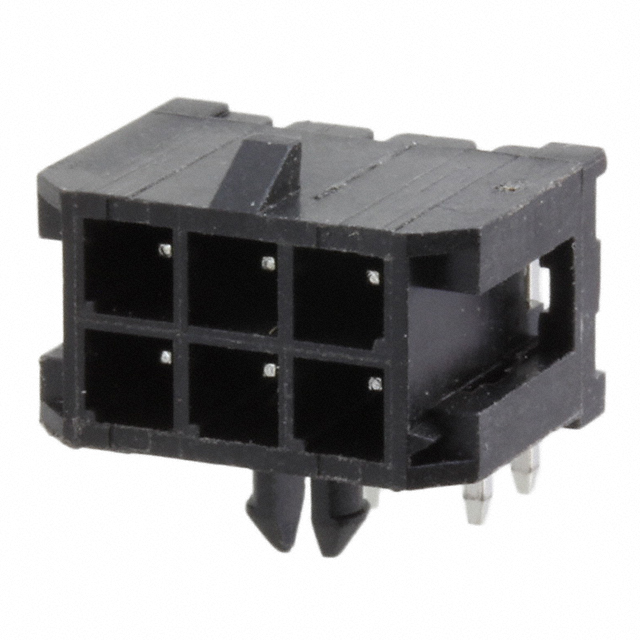

On Shore Technology Inc. 300HBT2R06	Male Pin	Shrouded - 4 Wall	Header	Solder	Brass	-40 C	105 ░C	Right Angle Through Hole	5 A	UL94 V-0	0.118 in	3 mm	Nylon 6T Polyamide (PA6T)	Black	Square	6	3 mm	0.118 in	Board Lock			Board to Cable/Wire	0.126 "	3.2 mm	250 V	2	Tin	All	Locking Ramp	0.29 in	7.37 mm
