246 CTI-V Series

Catalog

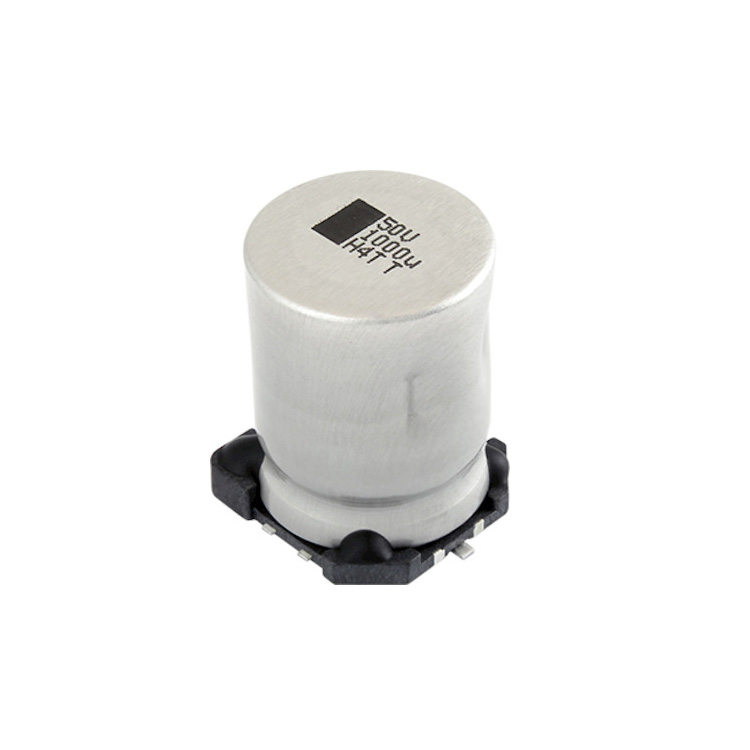

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 1000UF 50V 18X18X16MM 125C 5000H

Part	Surface Mount Land Width	Surface Mount Land Length	Lifetime	Ripple Current	Height - Seated (Max)	Size / Dimension Diameter	Operating Temperature (Max)	Operating Temperature (Min)	Polarization	Package / Case	Ratings	Voltage - Rated	Tolerance	Capacitance	Mounting Type	Applications	Impedance
Vishay Dale MAL224699112E3	0.748 in	0.748 in	5000 Hrs	1.3 A 780 mA	0.689 in	0.709 in	125 °C	-55 °C	Polar	Can - SMD Radial	AEC-Q200	50 V	20 %	1000 µF	Surface Mount	Automotive High Temperature Reflow	70 mOhms
Vishay Dale MAL224699711E3	0.748 in	0.748 in	2500 Hrs	540 mA 900 mA	0.689 in	0.709 in	125 °C	-55 °C	Polar	Can - SMD Radial	AEC-Q200	80 Vp-p	20 %	330 µF	Surface Mount	Automotive High Temperature Reflow	0.16 Ohms
Vishay Dale MAL224699712E3	0.748 in	0.748 in	2500 Hrs	1.1 A 660 mA	0.866 in	0.709 in	125 °C	-55 °C	Polar	Can - SMD Radial	AEC-Q200	80 Vp-p	20 %	470 µF	Surface Mount	Automotive High Temperature Reflow	110 mOhm
Vishay Dale MAL224699909E3	0.748 in	0.748 in	2500 Hrs	390 mA 650 mA	0.689 in	0.709 in	125 °C	-55 °C	Polar	Can - SMD Radial	AEC-Q200	100 VAC/DC	20 %	220 µF	Surface Mount	Automotive High Temperature Reflow	300 mOhm
