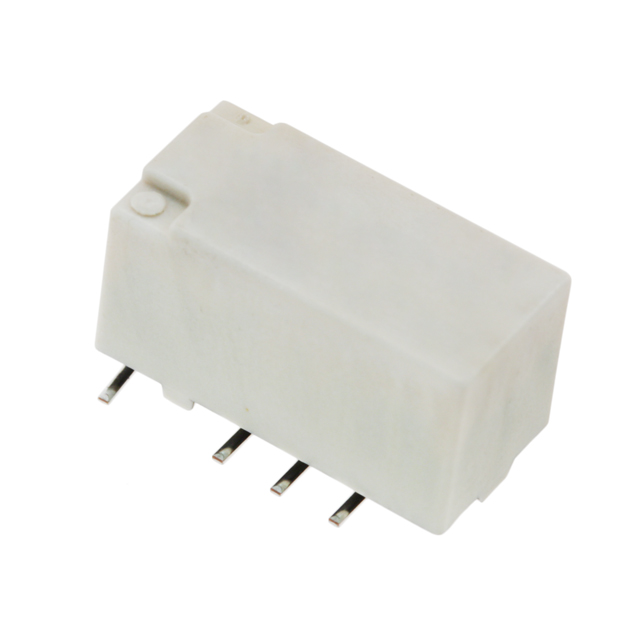

TXD2SA Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 2A 3V
| Part | Coil Resistance | Approval Agency | Switching Voltage [Max] | Must Operate Voltage | Contact Form | Coil Current | Load - Max Switching [Max] | Contact Rating (Current) | Contact Material | Mounting Type | Seal Rating | Operate Time | Relay Type | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Termination Style | Coil Voltage | Must Release Voltage | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 60 Ohms | BSI cURus | 220 VDC | 2.25 VDC | DPDT (2 Form C) | 50 mA | 440 W | 2 A | Gold (Au) Silver (Ag) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Latching Single Coil | Gull Wing | |||
 Panasonic Electronic Components | 101 Ohms | BSI cURus | 220 VDC | 3.38 VDC | DPDT (2 Form C) | 44.4 mA | 440 W | 2 A | Gold (Au) Silver (Ag) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Non Latching | Gull Wing | 4.5 VDC | 0.45 VDC | |
Panasonic Electronic Components | 100 Ohms | BSI cURus | 110 VDC | 3.75 VDC | DPDT (2 Form D) | 50 mA | 1 A | Gold (Au) Silver (Ag) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Non Latching | Gull Wing | 5 VDC | 0.5 VDC | 110 W | |
Panasonic Electronic Components | 8 Ohms | BSI cURus | 10 VDC | 1.13 VDC | DPDT (2 Form C) | 188 mA | 10 mA | Gold (Au) Silver Palladium (AgPd) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Non Latching | Gull Wing | 1.5 VDC | 0.15 VDC | ||
Panasonic Electronic Components | 72 Ohms | BSI cURus | 220 VDC | 3.38 VDC | DPDT (2 Form C) | 62.5 mA | 440 W | 2 A | Gold (Au) Silver (Ag) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Non Latching | Gull Wing | 4.5 VDC | 0.45 VDC | |
Panasonic Electronic Components | 2.133 kOhms | BSI cURus | 110 VDC | 18 VDC | DPDT (2 Form C) | 11.3 mA | 1 A | Gold (Au) Silver (Ag) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Non Latching | Gull Wing | 24 VDC | 2.4 VDC | 110 W | |
Panasonic Electronic Components | 72 Ohms | BSI cURus | 220 VDC | 3.38 VDC | DPDT (2 Form C) | 62.5 mA | 440 W | 2 A | Gold (Au) Silver (Ag) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Non Latching | Gull Wing | 4.5 VDC | 0.45 VDC | |
Panasonic Electronic Components | 60 Ohms | BSI cURus | 220 VDC | 2.25 VDC | DPDT (2 Form C) | 50 mA | 440 W | 2 A | Gold (Au) Silver (Ag) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Latching Single Coil | Gull Wing | |||
Panasonic Electronic Components | 32 Ohms | BSI cURus | 220 VDC | 2.25 VDC | DPDT (2 Form C) | 93.5 mA | 440 W | 2 A | Gold (Au) Silver (Ag) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Non Latching | Gull Wing | 0.3 VDC | ||
Panasonic Electronic Components | 89 Ohms | BSI cURus | 10 VDC | 3.75 VDC | DPDT (2 Form C) | 56.2 mA | 10 mA | Gold (Au) Silver Palladium (AgPd) | Surface Mount | Sealed - Fully | 4 ms | General Purpose | 4 ms | 85 °C | -40 C | Non Latching | Gull Wing | 5 VDC | 0.5 VDC |
