160645 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

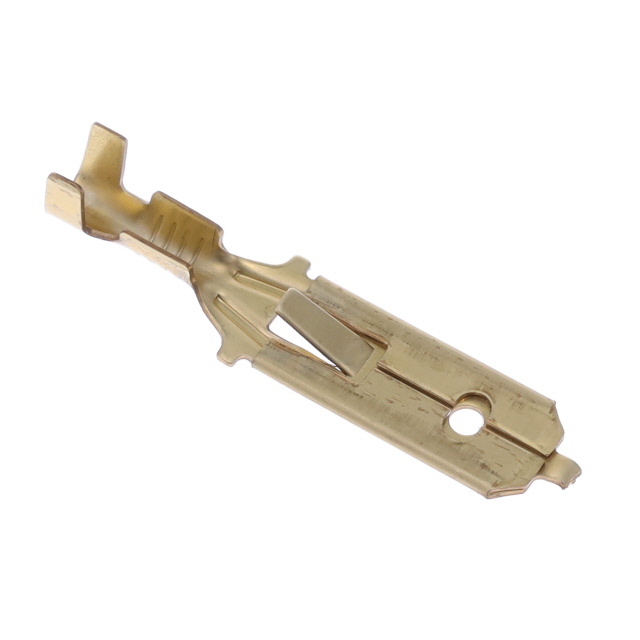

CONTACT, 250 SERIES, TAB, 22 AWG, 18 AWG, CRIMP, BRASS ROHS COMPLIANT: YES
| Part | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Terminal Type | Insulation | Tab Width [x] | Tab Width [x] | Contact Material | Gender | Mounting Type | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.126 in | 3.2 mm | 2.21 mm | 0.087 " | 22 AWG | 17.5 AWG | Crimp | Standard | Non-Insulated | 6.35 mm | 0.25 in | Brass | Male | Free Hanging (In-Line) | 0.81 mm | 0.032 in |
