KNP Series
Manufacturer: YAGEO
Beta
⌘K
WIREWOUND RESISTORS - THROUGH HOLE 1W 0.75 OHM 5%
| Part | Supplier Device Package | Power (Watts) | Number of Terminations [custom] | Composition | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Tolerance | Resistance | Temperature Coefficient | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | Axial | 1 W | 2 | Wirewound | 4.6 mm | 0.453 " | 0.181 in | 11.5 mm | Flame Retardant Coating Safety | -40 C | 200 °C | Axial | 5 % | 0.75 Ohms | ||

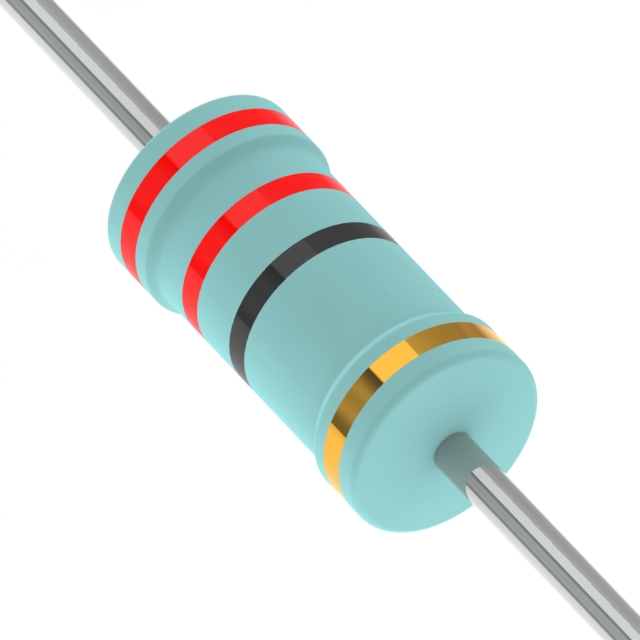

 YAGEO | Axial | 1 W | 2 | Wirewound | 4.6 mm | 0.453 " | 0.181 in | 11.5 mm | Flame Retardant Coating Safety | -40 C | 200 °C | Axial | 5 % | 22 Ohms | 300 ppm/°C | |
 YAGEO | Axial | 1 W | 2 | Wirewound | 4.6 mm | 0.453 " | 0.181 in | 11.5 mm | Flame Retardant Coating Safety | -40 C | 200 °C | Axial | 5 % | 0.3 Ohms | ||
 YAGEO | Axial | 1 W | 2 | Wirewound | 4.6 mm | 0.453 " | 0.181 in | 11.5 mm | Flame Retardant Coating Safety | -40 C | 200 °C | Axial | 5 % | 12 Ohms | 300 ppm/°C | |
 YAGEO | Axial | 1 W | 2 | Wirewound | 4.6 mm | 0.453 " | 0.181 in | 11.5 mm | Flame Retardant Coating Safety | -40 C | 200 °C | Axial | 5 % | 33 Ohms | ||
 YAGEO | Axial | 5 W | 2 | Wirewound | 8.5 mm | 0.965 " | 0.335 in | Flame Retardant Coating Safety | -40 C | 200 °C | Axial | 5 % | 220 Ohms | 300 ppm/°C | 24.5 mm |
