KONA Series
Manufacturer: Harwin Inc.
Beta
⌘K

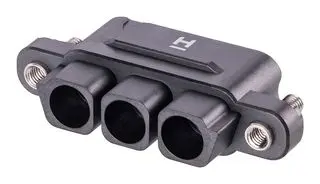

POWER TO THE BOARD 3P M SIL VRT THR BR CNCTR W/RVRS FIX
| Part | Contact Type | Style | Connector Type | Fastening Type | Termination | Contact Finish - Mating | Features | Number of Positions Loaded | Number of Rows | Contact Shape | Contact Material | Mounting Type | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Insulation Color | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Shrouding | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Note | Pitch | Pitch | Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Male Pin Power | Board to Board Cable | Header | Threaded | Solder | Gold | Mating Flange Mounting Flange | All | 1 | Circular | Beryllium Copper | Through Hole | Gold | 9.5 mm | 0.374 in | Black | 8.5 mm | 0.335 in | Polyphenylene Sulfide (PPS) | 4.5 mm | 0.177 in | UL94 V-0 | Shrouded - 4 Wall | 60 A | 150 °C | -65 ░C | |||||
 Harwin Inc. | Female Socket Power | Receptacle | Jackscrews Mating Flange Mounting Flange | 1 | Panel Mount | Polyphenylene Sulfide (PPS) | 150 °C | -65 ░C | Contacts Not Included | 8.5 mm | 0.335 in | Black | Crimp |
