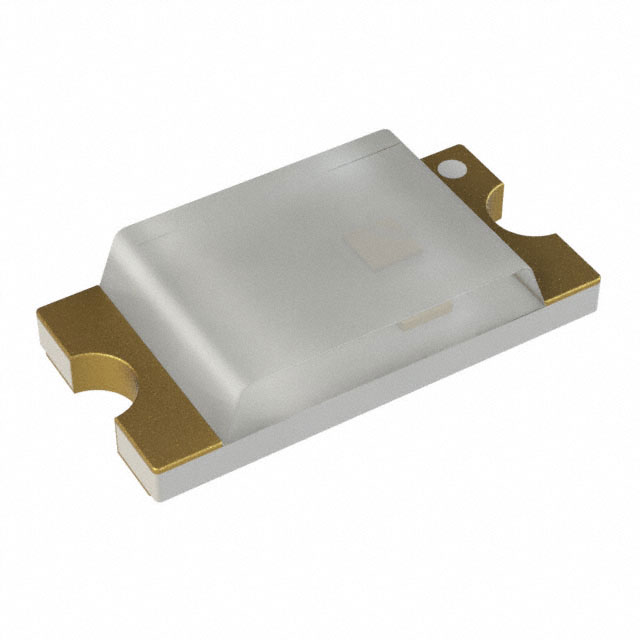

HSMR-C130 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED BLUE DIFFUSED SMD
| Part | Lens Color | Lens Style | Color | Package / Case | Package / Case | Wavelength - Peak | Size / Dimension [x] | Size / Dimension [y] | Lens Transparency | Viewing Angle | Mounting Type | Supplier Device Package | Wavelength - Dominant | Lens Size [x] | Lens Size [y] | Height (Max) [z] | Configuration | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | White | Rectangle with Flat Top | Blue | 1608 Metric | 0603 | 469 nm | 1.6 mm | 0.8 mm | Diffused | 145 ° | Surface Mount | Chip LED | 473 nm | 1.15 mm | 0.8 mm | 0.45 mm | Standard | 55 mcd | 3.4 V | 20 mA |
