8760MN Series

Catalog

MULTIPAIR CABLE, SPACEMAKER, SHIELDED, 1 PAIR, 18 AWG, 100 FT, 30.5 M

Part	Shield Coverage	Shield Material	Number of Conductors	Usage	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Features	Shield Type	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Wire Gauge	Length	Length	Ratings	Voltage
Belden Inc. 8760MN 008100	100 %	Aluminum	2	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Multi-Conductor	0.406 mm	0.016 in	Polypropylene (PP)	Drain Wire	Foil	Gray	Copper Tinned	41	34	0.169 in	4.29 mm	100 ft	30.5 m	18 AWG

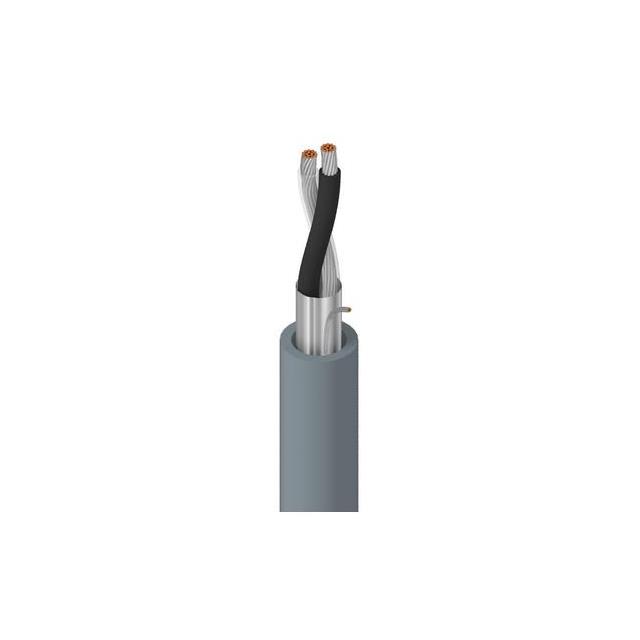

Belden Inc. 8760MN 0061000	100 %	Aluminum	2	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Multi-Conductor	0.406 mm	0.016 in	Polypropylene (PP)	Drain Wire	Foil	Blue	Copper Tinned	41	34	0.169 in	4.29 mm			18 AWG	304.8 m	1000 ft	UL Style 2937	300 VDC
Belden Inc. 8760MN 0081000	100 %	Aluminum	2	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Multi-Conductor	0.406 mm	0.016 in	Polypropylene (PP)	Drain Wire	Foil	Gray	Copper Tinned	41	34	0.169 in	4.29 mm			18 AWG	304.8 m	1000 ft	UL Style 2937	300 VDC
Belden Inc. 8760MN 0041000	100 %	Aluminum	2	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Multi-Conductor	0.406 mm	0.016 in	Polypropylene (PP)	Drain Wire	Foil	Yellow	Copper Tinned	41	34	0.169 in	4.29 mm			18 AWG	304.8 m	1000 ft	UL Style 2937	300 VDC
Belden Inc. 8760MN 006100	100 %	Aluminum	2	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Multi-Conductor	0.406 mm	0.016 in	Polypropylene (PP)	Drain Wire	Foil	Blue	Copper Tinned	41	34	0.169 in	4.29 mm	100 ft	30.5 m	18 AWG			UL Style 2937	300 VDC
