3221-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

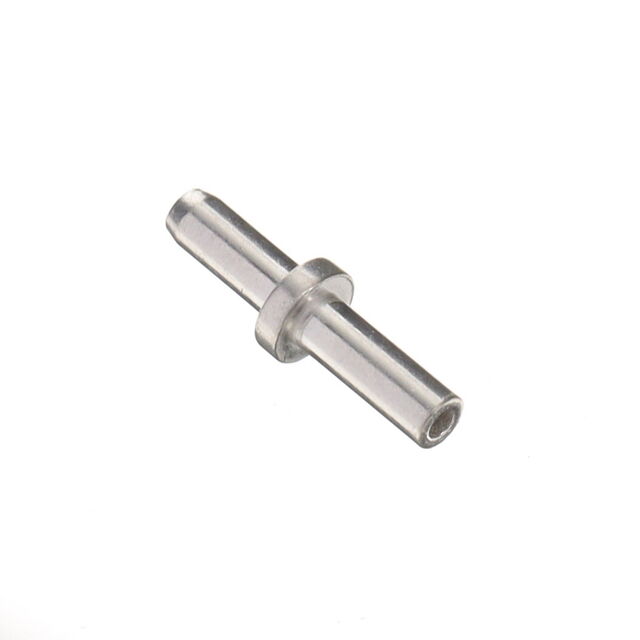

CONN PC PIN CIRC
| Part | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Length - Overall [x] | Length - Overall [x] | Terminal Style | Length - Above Flange [custom] | Length - Above Flange [custom] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Board Thickness [custom] | Board Thickness [custom] | Contact Finish | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Insulation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | PC Pin | 0.233 in | 5.92 mm | Single End | 0.1 in | 2.54 mm | 0.043 in | 1.09 mm | Swage | 0.039 in | 0.99 mm | 0.094 in | 2.39 mm | Tin | Brass | 1.78 mm | 0.07 in | 2.87 mm | 0.113 " | 0.04 in | 1.02 mm | Non-Insulated | Through Hole |
