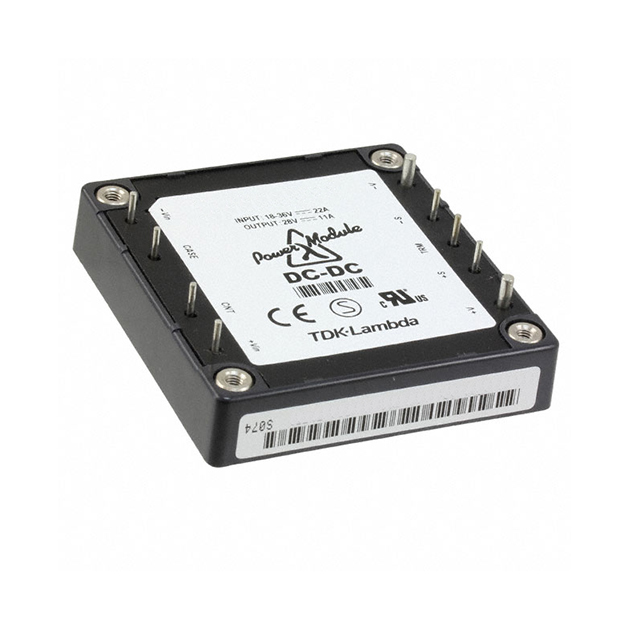

PAH350 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, HALF BRICK, 2:1, 350 W, 1 OUTPUT, 48 V

Part	Voltage - Isolation	Control Features	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Outputs	Power (Watts)	Package / Case	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Features
TDK Corporation PAH350S24-48	1.5 kV	Active Low Enable	ITE (Commercial)	-40 C	100 °C	Isolated Module	1	350 W	9-DIP Module 1/2 Brick	Through Hole	7.3 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	87 %	18 V	48 V	36 V	OCP OVP Remote On/Off
TDK Corporation PAH350S24-28/T	1.5 kV	Active Low Enable	ITE (Commercial)	-40 C	100 °C	Isolated Module	1	350 W	9-DIP Module 1/2 Brick	Through Hole	12.5 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	88 %	18 V	28 V	36 V	OCP OVP Remote On/Off

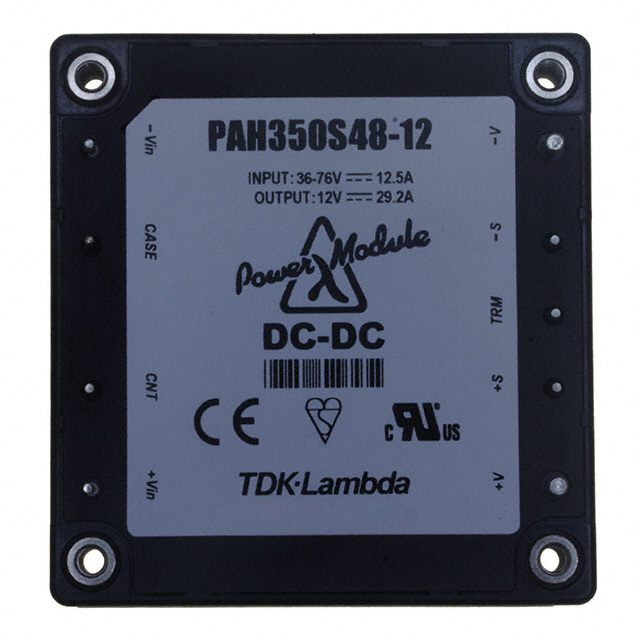

TDK Corporation PAH350S48-12	1.5 kV	Active Low Enable	ITE (Commercial)	-40 C	100 °C	Isolated Module	1	350 W	9-DIP Module 1/2 Brick	Through Hole	29.2 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	89 %	36 V	12 V	76 V	OCP OVP Remote On/Off
TDK Corporation PAH350S48-28/T	1.5 kV	Active Low Enable	ITE (Commercial)	-40 C	100 °C	Isolated Module	1	350 W	9-DIP Module 1/2 Brick	Through Hole	12.5 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	92 %	36 V	28 V	76 V	OCP OVP Remote On/Off
TDK Corporation PAH350S24-48/T	1.5 kV	Active Low Enable	ITE (Commercial)	-40 C	100 °C	Isolated Module	1	350 W	9-DIP Module 1/2 Brick	Through Hole	7.3 A	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	87 %	18 V	48 V	36 V	OCP OVP Remote On/Off
