NTLUS3A Series

Catalog

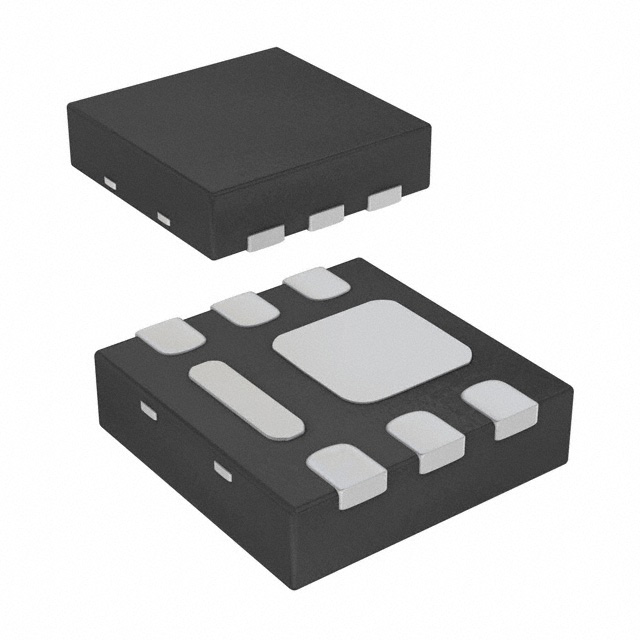

MOSFET P-CH 20V 5.1A 6UDFN

Part	Rds On (Max) @ Id, Vgs	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Package / Case	FET Type	Supplier Device Package	Drain to Source Voltage (Vdss)	Vgs (Max)	Technology	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]
ON Semiconductor NTLUS3A18PZCTAG	18 mOhm	Surface Mount	28 nC	5.1 A	1 V	6-UDFN Exposed Pad	P-Channel	6-UDFN (2x2)	20 V	8 V	MOSFET (Metal Oxide)	1.5 V 4.5 V	2240 pF
ON Semiconductor NTLUS3A40PZCTAG	29 mOhm	Surface Mount		4 A	1 V	6-UDFN Exposed Pad	P-Channel	6-UDFN (2x2)	20 V	8 V	MOSFET (Metal Oxide)	1.5 V 4.5 V		-55 °C	150 °C	29 nC	700 mW	2600 pF
