TSE Series

Manufacturer: OptiFuse

Catalog

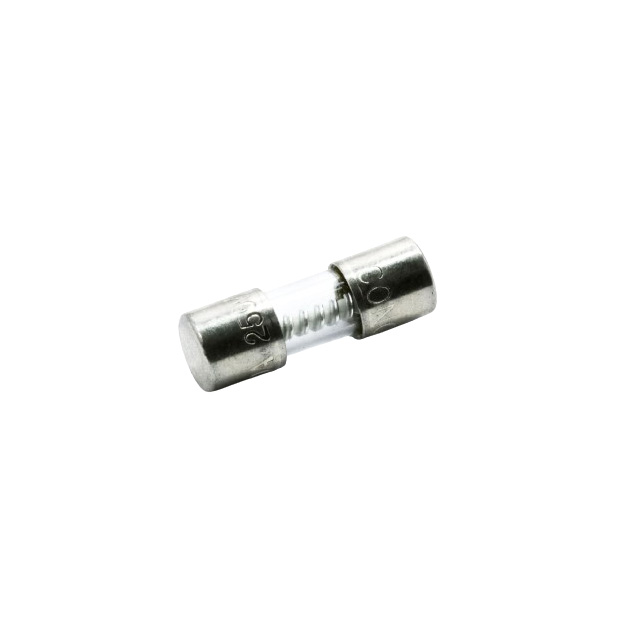

FUSE GLASS 2.5A 250VAC 2AG

Part	Melting I˛t	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [x]	Package / Case	Package / Case [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Melting I²t	Breaking Capacity @ Rated Voltage	Response Time	Current Rating (Amps)	Fuse Type	Voltage Rating - AC
OptiFuse TSE-2.5A	6.14	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	6.14	100 A	Slow Blow	2.5 A	Cartridge Glass	250 V
OptiFuse TSE-315MA	0.12	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	0.12 I²t	100 A	Slow Blow	0.315 A	Cartridge Glass	250 V
OptiFuse TSE-1A	2.245	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	2.245	100 A	Slow Blow	1 A	Cartridge Glass	250 V
OptiFuse TSE-8A	147.9	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	147.9 I²t	100 A	Slow Blow	8 A	Cartridge Glass	250 V
OptiFuse TSE-2A	13.45	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	13.45	100 A	Slow Blow	2 A	Cartridge Glass	250 V
OptiFuse TSE-3A	9.25	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	9.25	100 A	Slow Blow	3 A	Cartridge Glass	250 V
OptiFuse TSE-3.5A	12.53	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	12.53	100 A	Slow Blow	3.5 A	Cartridge Glass	250 V
OptiFuse TSE-7A	108.4	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	108.4	100 A	Slow Blow	7 A	Cartridge Glass	250 V
OptiFuse TSE-5A	37.27	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	37.27 I²t	100 A	Slow Blow	5 A	Cartridge Glass	250 V
OptiFuse TSE-250MA	0.0735	cULus UL 248	-55 C	125 °C	5 mm	2AG	15 mm	15 mm	0.591 in	0.177 "	4.5 mm	Requires Holder	0.0735	100 A	Slow Blow	0.25 A	Cartridge Glass	250 V
