MP3435 Series

Catalog

DC/DC CONV, SYNC BOOST, 600KHZ, QFN-20 ROHS COMPLIANT: YES

Part	Voltage - Output (Min/Fixed)	Output Configuration	Topology	Supplier Device Package	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Frequency - Switching	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output	Number of Outputs	Function	Power - Output	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Utilized IC / Part	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Contents	Regulator Topology

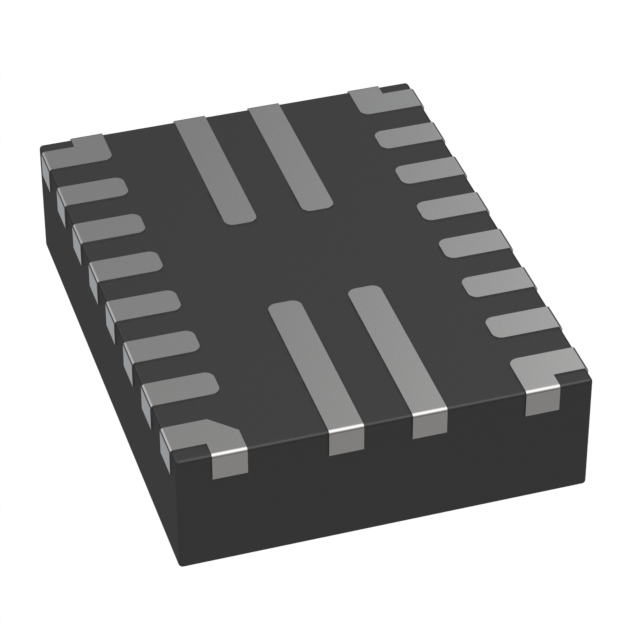

Monolithic Power Systems Inc. MP3435GL-P	3 V	Positive	Boost	20-QFN (3x4)	3 V	20 V	22 V	600 kHz	Adjustable	-40 C	125 °C	Surface Mount	19 A	1	Step-Up

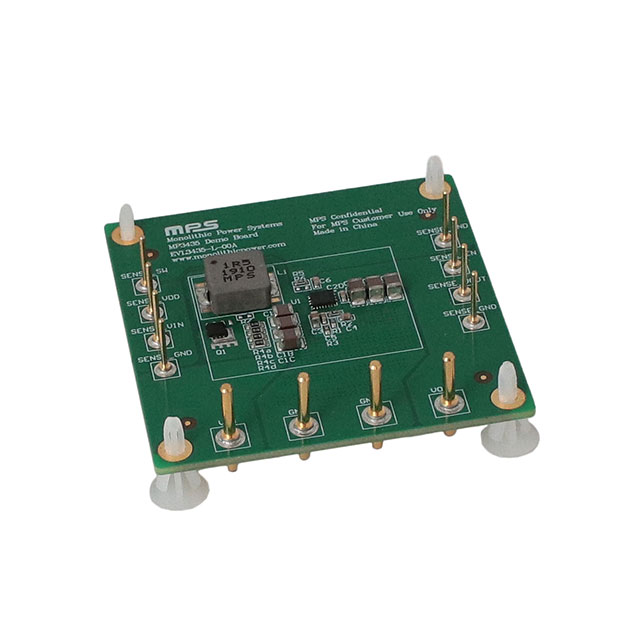

Monolithic Power Systems Inc. EVL3435-L-00A								600 kHz								4.6 W	Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	MP3435	12 V	3 V	10 VDC	DC/DC Step Up	Board(s)	Boost
Monolithic Power Systems Inc. MP3435GL-Z	3 V	Positive	Boost	20-QFN (3x4)	3 V	20 V	22 V	600 kHz	Adjustable	-40 C	125 °C	Surface Mount	19 A	1	Step-Up
