TIL113M Series

6-pin DIP Photodarlington Output Optocoupler

Catalog

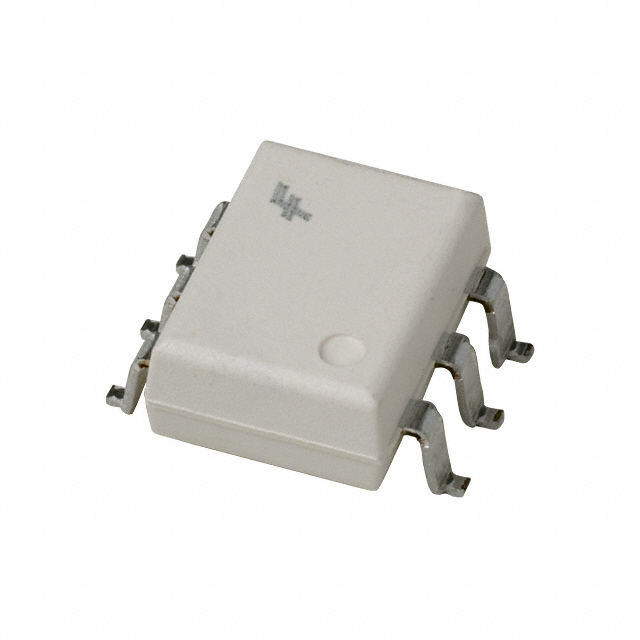

6-pin DIP Photodarlington Output Optocoupler

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Current Transfer Ratio (Min) [Min]	Mounting Type	Turn On / Turn Off Time (Typ)	Turn On / Turn Off Time (Typ) [Max]	Supplier Device Package	Number of Channels	Current - DC Forward (If) (Max) [Max]	Vce Saturation (Max) [Max]	Current - Output / Channel	Voltage - Output (Max) [Max]	Input Type	Package / Case	Voltage - Isolation	Package / Case	Package / Case

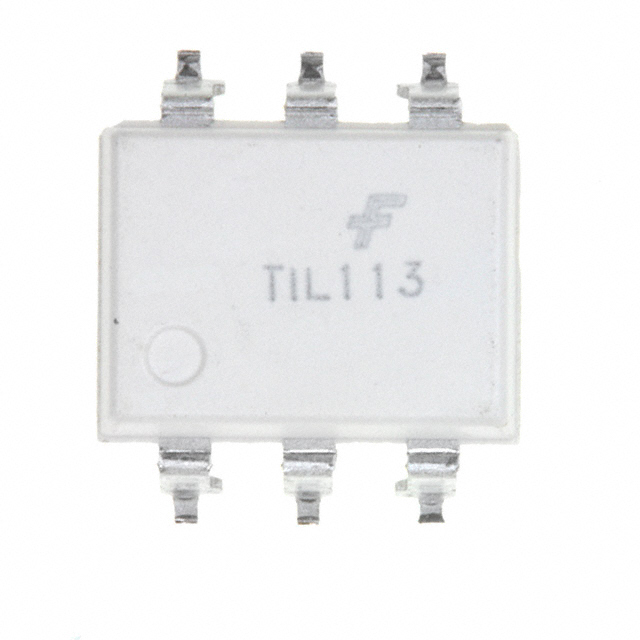

ON Semiconductor TIL113SM	100 °C	-40 °C	Darlington with Base	300 %	Surface Mount	5 µs	100 µs	6-SMD	1	80 mA	1.25 V	150 mA	30 V	DC	6-SMD Gull Wing	4170 Vrms
ON Semiconductor TIL113SD	100 °C	-55 °C	Darlington with Base	300 %	Surface Mount	55 µs 350 ns		6-SMD	1	100 mA	1.25 V		30 V	DC	6-SMD Gull Wing	5300 Vrms
ON Semiconductor TIL1133SD	100 °C	-55 °C	Darlington with Base	300 %	Surface Mount	55 µs 350 ns		6-SMD	1	100 mA	1.25 V		30 V	DC	6-SMD Gull Wing	5300 Vrms
ON Semiconductor TIL113300W	100 °C	-55 °C	Darlington with Base	300 %	Through Hole	55 µs 350 ns		6-DIP	1	100 mA	1.25 V		30 V	DC	6-DIP	5300 Vrms	10.16 mm	10.16 mm
ON Semiconductor TIL113W	100 °C	-55 °C	Darlington with Base	300 %	Through Hole	55 µs 350 ns		6-DIP	1	100 mA	1.25 V		30 V	DC	6-DIP	5300 Vrms	10.16 mm	10.16 mm

6-pin DIP Photodarlington Output Optocoupler

• "High Sensitivity to Low Input Drive Current

• Meets or Exceeds All JEDEC Registered Specifications

• Safety and Regulatory Approvals:

• UL1577, 4,170 VACRMSfor 1 Minute

• DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage"

The 4N29M, 4N30M, 4N32M, 4N33M, H11B1M and TIL113M have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
