34159 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

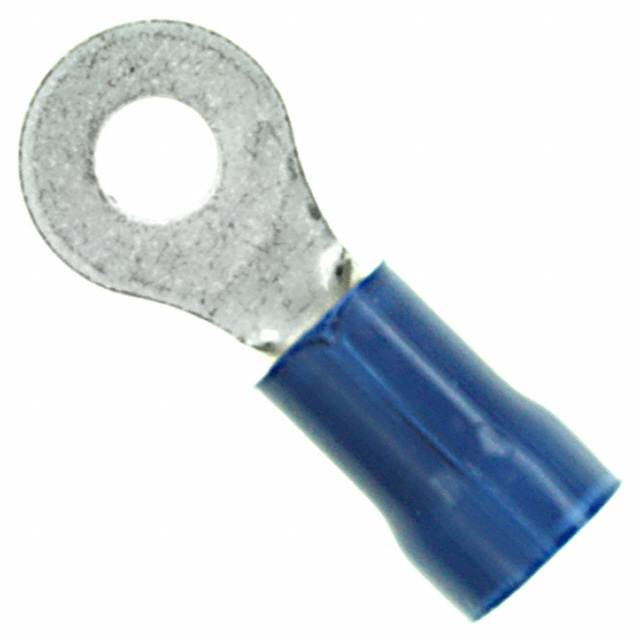

TERMINAL,PG R 16-14 6
| Part | Contact Finish | Features | Mounting Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Thickness | Thickness | Stud/Tab Size | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Terminal Type | Color | Insulation | Termination | Contact Material | Material - Insulation | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | Serrated Termination | Free Hanging (In-Line) | 0.343 in | 8.71 mm | 0.031 in | 0.79 mm | 6 Stud | 4.9 mm | 3 mm | 0.193 in | 0.118 in | Circular | Blue | Insulated | Crimp | Copper | Poly-Vinyl Chloride (PVC) | 22.12 mm | 0.871 in |
