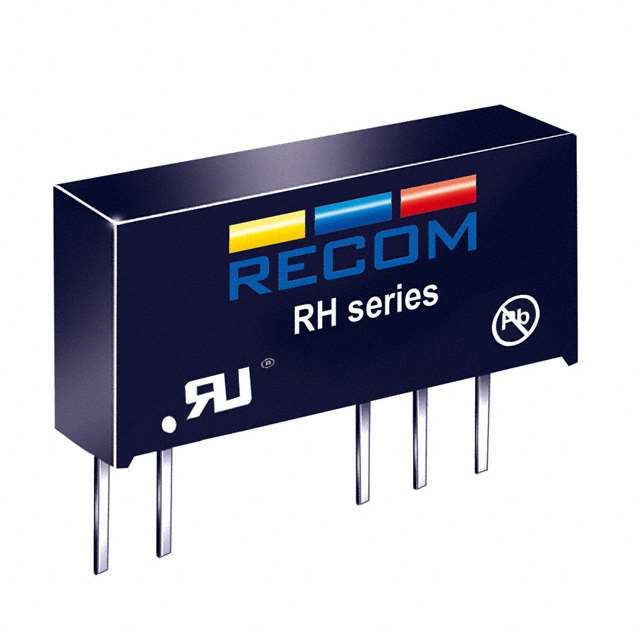

RH Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 4KV UNREG 12VIN +/-12VOUT

...

Part	Type	Features	Applications	Voltage - Isolation	Efficiency	Number of Outputs	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Min]
Recom Power RH-1212D/HP	Isolated Module	SCP	ITE (Commercial) Medical	4000 V	84 %	2	12 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	10.8 V	90 °C	-40 C	7-SIP Module 5 Leads	13.2 V	Through Hole	42 mA	-12 V
Recom Power RH-1205D/HP	Isolated Module	SCP	ITE (Commercial) Medical	4000 V	78 %	2	5 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	10.8 V	90 °C	-40 C	7-SIP Module 5 Leads	13.2 V	Through Hole		-5 V	100 mA	100 mA
Recom Power RH-2405D/HP	Isolated Module	SCP	ITE (Commercial) Medical	4000 V	78 %	2	5 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	21.6 V	90 °C	-40 C	7-SIP Module 5 Leads	26.4 V	Through Hole		-5 V	100 mA	100 mA
Recom Power RH-2412D/P	Isolated Module	SCP	ITE (Commercial) Medical	3000 V	84 %	2	12 V	0.4 "	19.6 mm	6 mm	0.77 in	10.2 mm	0.24 "	21.6 V	90 °C	-40 C	7-SIP Module 5 Leads	26.4 V	Through Hole	42 mA	-12 V
Recom Power RH-0515D	Isolated Module		ITE (Commercial) Medical	3000 V	84 %	2	15 V	0.4 "	19.6 mm	6 mm	0.77 in	10.2 mm	0.24 "	4.5 V	90 °C	-40 C	7-SIP Module 5 Leads	5.5 V	Through Hole		-15 V			33 mA	33 mA

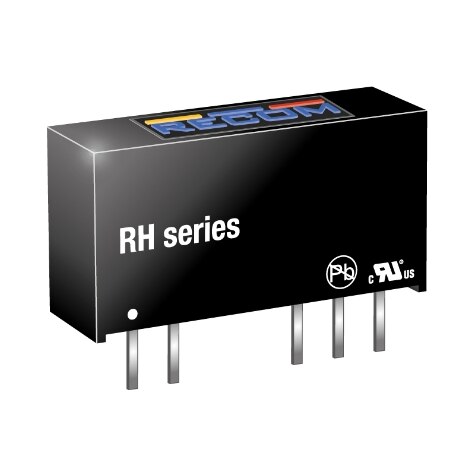

Recom Power RH-241509D/P	Isolated Module	SCP	ITE (Commercial)	3000 V	84 %	2	15 V	0.4 "	19.6 mm	6 mm	0.77 in	10.2 mm	0.24 "	21.6 V	90 °C	-40 C	7-SIP Module 5 Leads	26.4 V	Through Hole		-9 V			56 mA	33 mA
Recom Power RH-1505D/P	Isolated Module	SCP	ITE (Commercial) Medical	3000 V	78 %	2	5 V	0.4 "	19.6 mm	6 mm	0.77 in	10.2 mm	0.24 "	13.5 V	90 °C	-40 C	7-SIP Module 5 Leads	16.5 V	Through Hole		-5 V	100 mA	100 mA
Recom Power RH-0512D/HP	Isolated Module	SCP	ITE (Commercial) Medical	4000 V	84 %	2	12 V	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	4.5 V	90 °C	-40 C	7-SIP Module 5 Leads	5.5 V	Through Hole	42 mA	-12 V
Recom Power RH-1505D	Isolated Module		ITE (Commercial) Medical	3000 V	78 %	2	5 V	0.4 "	19.6 mm	6 mm	0.77 in	10.2 mm	0.24 "	13.5 V	90 °C	-40 C	7-SIP Module 5 Leads	16.5 V	Through Hole		-5 V	100 mA	100 mA
Recom Power RH-0509D	Isolated Module		ITE (Commercial) Medical	3000 V	79 %	2	9 V	0.4 "	19.6 mm	6 mm	0.77 in	10.2 mm	0.24 "	4.5 V	90 °C	-40 C	7-SIP Module 5 Leads	5.5 V	Through Hole		-9 V			56 mA
