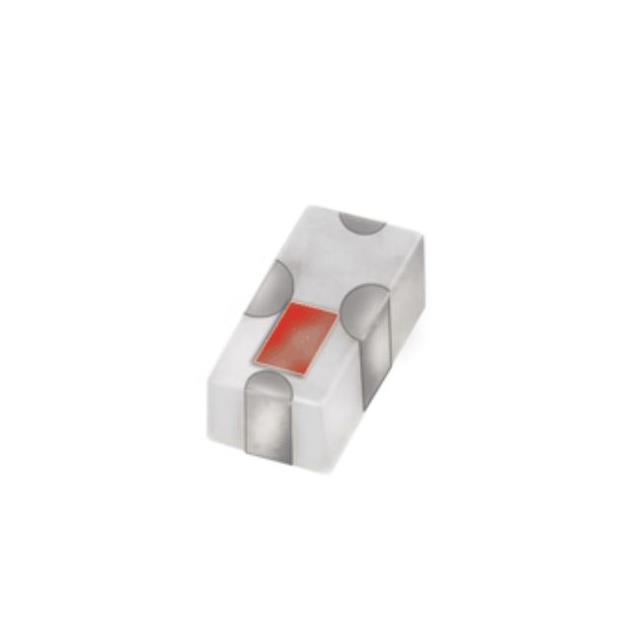

LFCW Series
Manufacturer: Mini-Circuits
Beta
⌘K
SIGNAL CONDITIONING LOW PASS FILTER / SMT / ROHS
| Part | Filter Type | Frequency | Insertion Loss | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Package / Case | Package / Case | Impedance | Height (Max) [Max] [z] | Height (Max) [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | Low Pass | 11.9 GHz | 2.4 dB | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | Surface Mount | 0603 (1608 Metric) | 4 PC Pad | 50 Ohms | 0.028 in | 0.7 mm | |
 Mini-Circuits | Low Pass | 3.2 GHz | 1.2 dB | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | Surface Mount | 0603 (1608 Metric) | 6 PC Pad | 50 Ohms | 0.61 mm | 0.024 in |
