DLPC3470 Series

DLP® controller for DLP2010LC digital micromirror device (DMD)

Catalog

DLP® controller for DLP2010LC digital micromirror device (DMD)

Part	Supplier Device Package	Mounting Type	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]

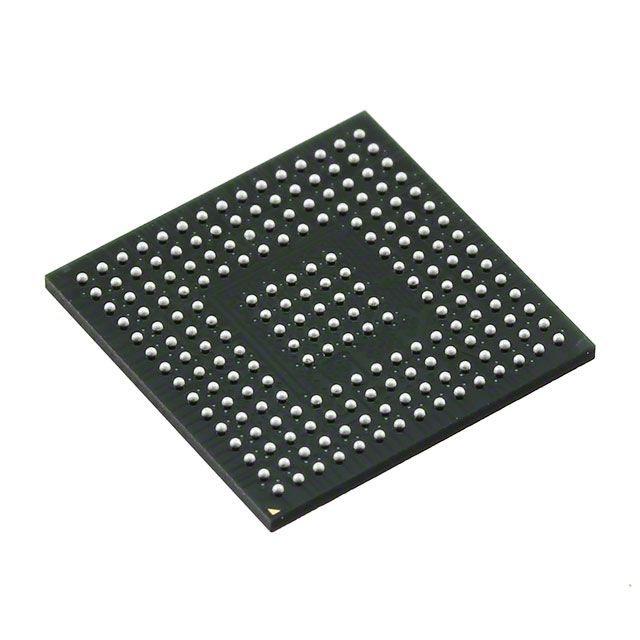

Texas Instruments DLPC3470CZEZ	201-NFBGA (13x13)	Surface Mount	106 mA	1.155 V	1.045 V	DLP	201-VFBGA	-30 ░C	85 °C

Catalog

DLP® controller for DLP2010LC digital micromirror device (DMD)

Key Features

• Display and Light Controller forDLP2010LCandDLP2010NIR(0.2 WVGA) DMDsLight Control Features:Pattern display optimized for machine vision and digital exposureFlexible internal (1D) and external (2D) pattern streaming modesProgrammable exposure timesHigh speed pattern rates up to 2500 Hz (1-bit) and 360 Hz (8-bit)Programmable 2D Static PatternsInternal Pattern streaming mode enables simplified system designEliminates the need for Video interfaceStore >1000 patterns in the flash memoryFlexible trigger signals for camera or sensor synchronizationOne configurable input triggerTwo configurable output triggersDisplay FeaturesSupports Input Image Sizes up to 720p and scales to WVGAInput Frame Rates up to 240 Hz24-Bit, Input Pixel Interface Support:Parallel or BT656, Interface ProtocolsPixel Clock up to 155 MHzImage Processing - IntelliBright™ Algorithms, Image Resizing, 1D Keystone, Programmable DegammaSystem Features:I2C Control of Device ConfigurationProgrammable Splash ScreensProgrammable LED Current ControlAuto DMD Parking at Power DownDisplay and Light Controller forDLP2010LCandDLP2010NIR(0.2 WVGA) DMDsLight Control Features:Pattern display optimized for machine vision and digital exposureFlexible internal (1D) and external (2D) pattern streaming modesProgrammable exposure timesHigh speed pattern rates up to 2500 Hz (1-bit) and 360 Hz (8-bit)Programmable 2D Static PatternsInternal Pattern streaming mode enables simplified system designEliminates the need for Video interfaceStore >1000 patterns in the flash memoryFlexible trigger signals for camera or sensor synchronizationOne configurable input triggerTwo configurable output triggersDisplay FeaturesSupports Input Image Sizes up to 720p and scales to WVGAInput Frame Rates up to 240 Hz24-Bit, Input Pixel Interface Support:Parallel or BT656, Interface ProtocolsPixel Clock up to 155 MHzImage Processing - IntelliBright™ Algorithms, Image Resizing, 1D Keystone, Programmable DegammaSystem Features:I2C Control of Device ConfigurationProgrammable Splash ScreensProgrammable LED Current ControlAuto DMD Parking at Power Down

Description

TheDLPC3470display and light controller supports reliable operation of theDLP2010LCorDLP2010NIRdigital micromirror device (DMD) for video display and light control applications. The DLPC3470 controller provides a convenient interface between user electronics and the DMD to display video and steer light patterns with high speed, precision, and efficiency. Visit thegetting started with TI DLP Pico™ display technologypage, and view theprogrammer’s guideto learn how to get started. The chipsets include established resources to help the user accelerate the design cycle, which includeproduction ready optical modules, optical module manufacturers, anddesign houses. TheDLPC3470display and light controller supports reliable operation of theDLP2010LCorDLP2010NIRdigital micromirror device (DMD) for video display and light control applications. The DLPC3470 controller provides a convenient interface between user electronics and the DMD to display video and steer light patterns with high speed, precision, and efficiency. Visit thegetting started with TI DLP Pico™ display technologypage, and view theprogrammer’s guideto learn how to get started. The chipsets include established resources to help the user accelerate the design cycle, which includeproduction ready optical modules, optical module manufacturers, anddesign houses.
