VE17 Series

Catalog

VARISTOR 360V 6KA DISC 17MM

Part	Mounting Type	Energy	Varistor Voltage (Min) [Min]	Maximum AC Volts [Max]	Package / Case	Varistor Voltage (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance @ Frequency	Current - Surge	Number of Circuits	Maximum DC Volts [Max]	Varistor Voltage (Max) [Max]	Varistor Voltage (Max)

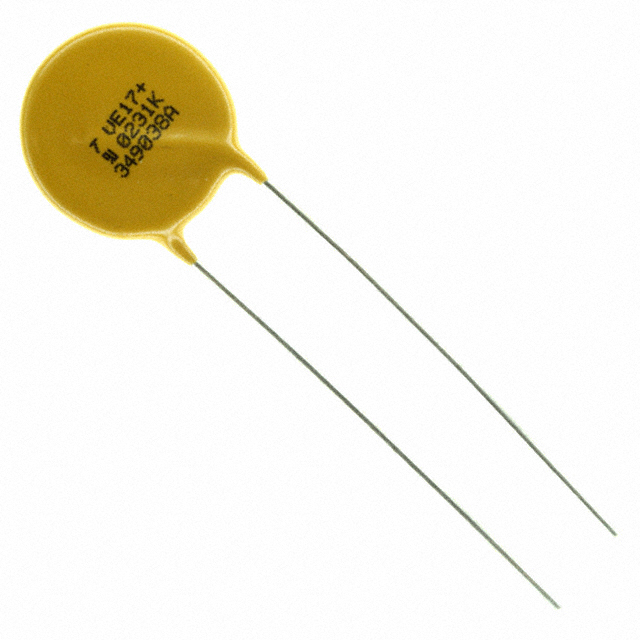

KYOCERA AVX VE17P00231K	Through Hole	130 J	324 V	230 V	Disc 17mm	360 V	125 °C	-40 °C	1 kHz 550 pF	6000 A	1	300 V	396 V
KYOCERA AVX VE17M00141K	Through Hole	26.5 J	198 V	140 V	Disc 17mm	220 V	125 °C	-40 °C	1 kHz 930 pF	4.5 kA	1	180 V		242 V
KYOCERA AVX VE17M00151KED	Through Hole	30 J	216 V	150 V	Disc 17mm	240 V	125 °C	-40 °C	850 pF	4.5 kA	1	200 V	264 V
KYOCERA AVX VE17M00151K	Through Hole	30 J	216 V	150 V	Disc 17mm	240 V	125 °C	-40 °C	850 pF	4.5 kA	1	200 V	264 V
KYOCERA AVX VE17M00461K--	Through Hole	47 J	675 V	460 V	Disc 17mm	750 V	125 °C	-40 °C	275 pF	4.5 kA	1	615 V	825 V
KYOCERA AVX VE17P00211K	Through Hole	115 J	297 V	210 V	Disc 17mm	330 V	125 °C	-40 °C	600 pF	6000 A	1		363 V
KYOCERA AVX VE17M00200K--	Through Hole	4 J	29.5 V	20 V	Disc 17mm	33 V	125 °C	-40 °C	1 kHz 5700 pF	1 kA	1	26 V	36.5 V
KYOCERA AVX VE17M00251K	Through Hole	39 J	351 V	250 V	Disc 17mm	390 V	125 °C	-40 °C	1 kHz 500 pF	4.5 kA	1	320 V	429 V
KYOCERA AVX VE17M00321K	Through Hole	42 J	459 V	320 V	Disc 17mm	510 V	125 °C	-40 °C	380 pF	4.5 kA	1	420 V	561 V
KYOCERA AVX VE17M01150K	Through Hole	22 J	162 V	115 V	Disc 17mm	180 V	125 °C	-40 °C	1100 pF	4.5 kA	1	150 V	198 V
