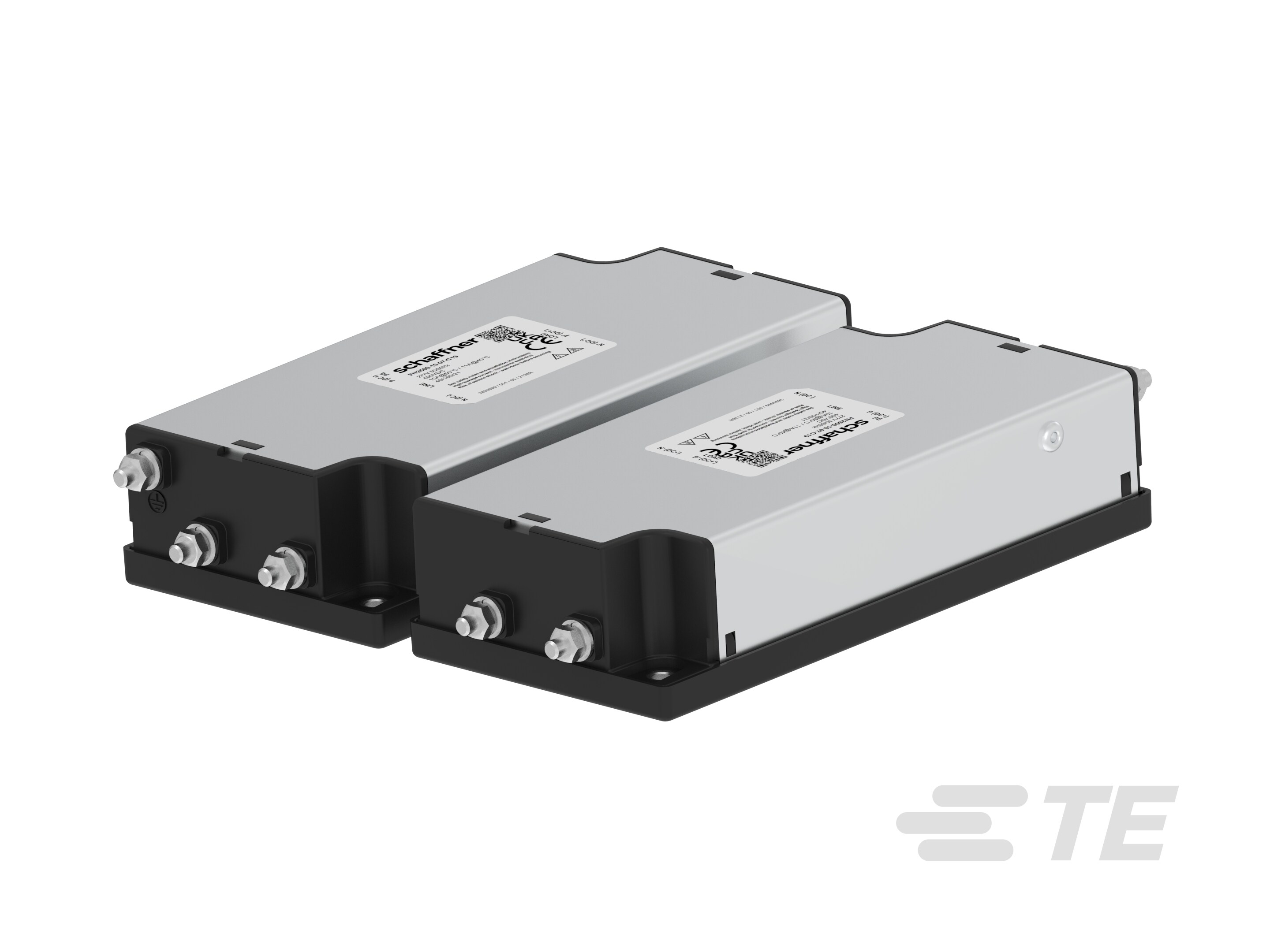

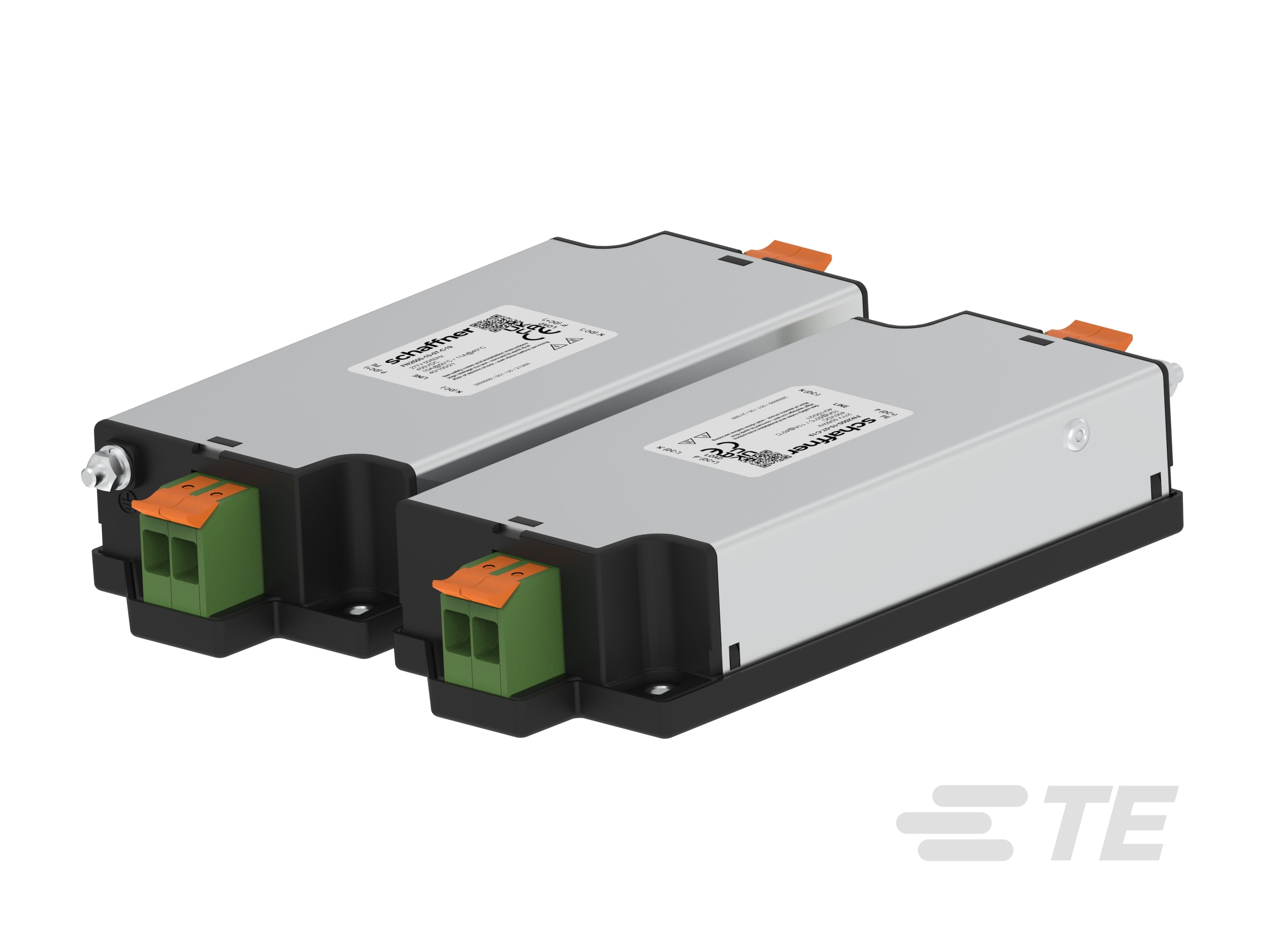

Schaffner FN2520 Series
Power Line Filters Single phase filter 1HU 10 A, fast-on connectors, 9.4nF
Manufacturer: TE Connectivity AMP Connectors
Catalog
Power Line Filters Single phase filter 1HU 10 A, fast-on connectors, 9.4nF
Beta
⌘K
Power Line Filters Single phase filter 1HU 10 A, fast-on connectors, 9.4nF
Power Line Filters Single phase filter 1HU 10 A, fast-on connectors, 9.4nF
Power Line Filters Single phase filter 1HU 10 A, fast-on connectors, 9.4nF
| Part | Current | Frequency - Operating | Inductance [custom] | Inductance [custom] | Voltage - Rated DC | Configuration | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Filter Type | Approval Agency | Voltage - Rated AC | Termination Style | Applications | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 15 A | 60 Hz | 4 mH | 4 mH | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Threaded Post (M4) | General Purpose | |
 TE Connectivity AMP Connectors | 10 A | 60 Hz | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Terminal Block | General Purpose | 8.3 mH | ||
 TE Connectivity AMP Connectors | 20 A | 60 Hz | 2.4 mH | 2.4 mH | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Wire Leads | General Purpose | |
 TE Connectivity AMP Connectors | 25 A | 60 Hz | 1.5 mH | 1.5 mH | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Wire Leads | General Purpose | |
 TE Connectivity AMP Connectors | 25 A | 60 Hz | 1.5 mH | 1.5 mH | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Terminal Block | General Purpose | |
 TE Connectivity AMP Connectors | 32 A | 60 Hz | 900 µH | 900 µH | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Threaded Post (M4) | General Purpose | |
 TE Connectivity AMP Connectors | 20 A | 60 Hz | 2.4 mH | 2.4 mH | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Terminal Block | General Purpose | |
 TE Connectivity AMP Connectors | 32 A | 60 Hz | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Terminal Block | General Purpose | 900 µH | ||
TE Connectivity AMP Connectors | 10 A | 60 Hz | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Wire Leads | General Purpose | 8.3 mH | ||
 TE Connectivity AMP Connectors | 10 A | 60 Hz | 400 V | Two Stage | Chassis Mount | 85 °C | -40 C | Single Phase | CE CQC CSA ENEC UKCA UR | 277 V | Threaded Post (M4) | General Purpose | 8.3 mH |
