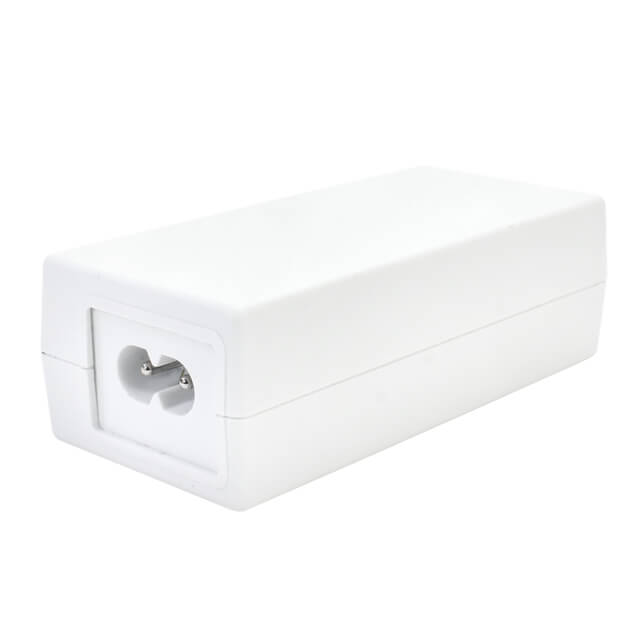

SDM24-UD Series
Manufacturer: CUI Inc.
Beta
⌘K
DESKTOP AC ADAPTERS AC-DC, 5 VDC, 4 A, SW, C8 DESK-TOP, P5 RT CENTER POS, NO CORD, LEVEL VI, MED, WHITE
| Part | Input Connector | Region Utilized | Voltage - Output | Cord Length | Cord Length | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Input Type | Approval Agency | Polarization | No Load Power Consumption | Output Connector [custom] | Output Connector | Output Connector [custom] | Output Connector [custom] | Weight | Weight | Efficiency | Current - Output (Max) [Max] | Power (Watts) | Form | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | IEC 320-C8 | International | 5 V | 1.2 m | 47.2 in | Medical | 1.22 in | 98 mm | 1.81 in | 3.86 " | 31 mm | 46 mm | 60601-1 | Cord (Sold Separately) | CE cURus FCC TUV | Positive Center | 100 mW | 9.5 mm | Barrel Plug R/A | 5.5 mm | 2.1 mm | 0.441 lb | 200.03 g | Level VI | 4 A | 20 W | Desktop (Class II) | 40 °C | 0 °C | 264 VAC | 90 VAC |
