V2D2A601 Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER SPST-NO 20A 12V
| Part | Switch Function | Approval Agency | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Voltage Rating - DC | Current Rating (Amps) | Color - Actuator/Cap | Actuator Type | Termination Style | Mechanical Life | Circuit | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies | Off-Mom | CSA UL VDE | Green Incandescent | 12 VAC/DC | IP66/IP68 | 12 V | 20 A | Red | Concave (Standard V) - Illuminated | Quick Connect - 0.250" (6.3mm) | 100000 Cycles | SPST-NO | No Marking | 21.08 mm | 36.83 mm | 85 °C | -40 °C | Panel Mount Snap-In | 100000 Cycles |

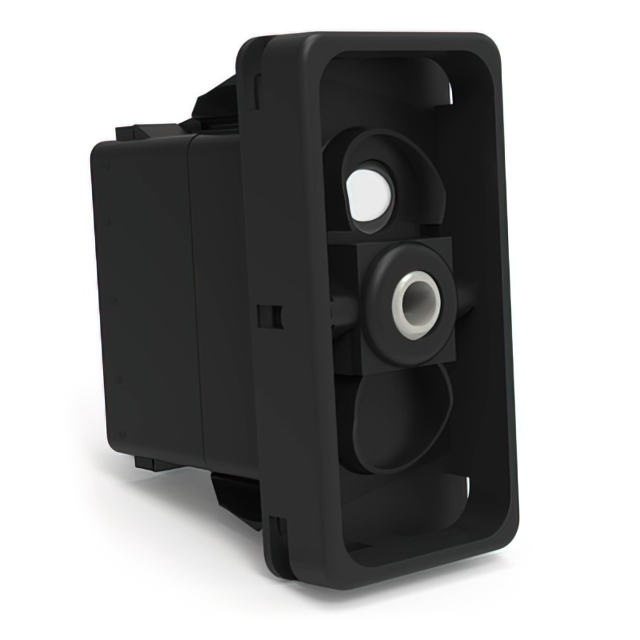

 Carling Technologies | Off-Mom | CSA UL VDE | Incandescent | 12 VAC/DC | IP66/IP68 | 12 V | 20 A | Actuator Arm Cap Required - Illuminated | Quick Connect - 0.250" (6.3mm) | 100000 Cycles | SPST-NO | Varies by Cap | 21.08 mm | 36.83 mm | 85 °C | -40 °C | Panel Mount Snap-In | 100000 Cycles | |
Carling Technologies | Off-Mom | CSA UL VDE | Green Incandescent | 12 VAC/DC | IP66/IP68 | 12 V | 20 A | Black | Concave (Standard V) - Illuminated | Quick Connect - 0.250" (6.3mm) | 100000 Cycles | SPST-NO | No Marking | 21.08 mm | 36.83 mm | 85 °C | -40 °C | Panel Mount Snap-In | 100000 Cycles |
