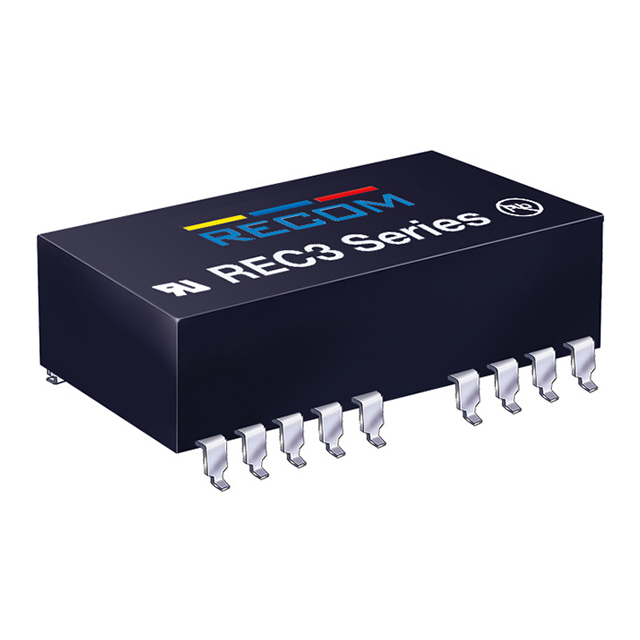

REC3-2412 Series
Manufacturer: Recom Power
Beta
⌘K
DC DC CONVERTER +/-12V 3W
| Part | Voltage - Output 1 | Power (Watts) | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Mounting Type | Package / Case | Applications | Control Features | Efficiency | Voltage - Isolation | Number of Outputs | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 12 V | 3 W | Isolated Module | 0.78 in | 0.44 in | 1.26 in | 11.2 mm | 32 mm | 19.9 mm | -12 V | 85 °C | -40 C | Remote On/Off SCP | 36 V | 9 V | Surface Mount | 24-SMD Module 18 Leads | ITE (Commercial) | Active Low Enable | 85 % | 2000 V | 2 | 125 mA |
