Sealed Tact Switch for SMT
Key Features
• Actuation forces 1.6, 3.2 & 5N
• Hard actuator
• IP67
• Height 3.9 mm
• 6.2 x 6.2 mm form factor
• SMT for J leads
Description
AI

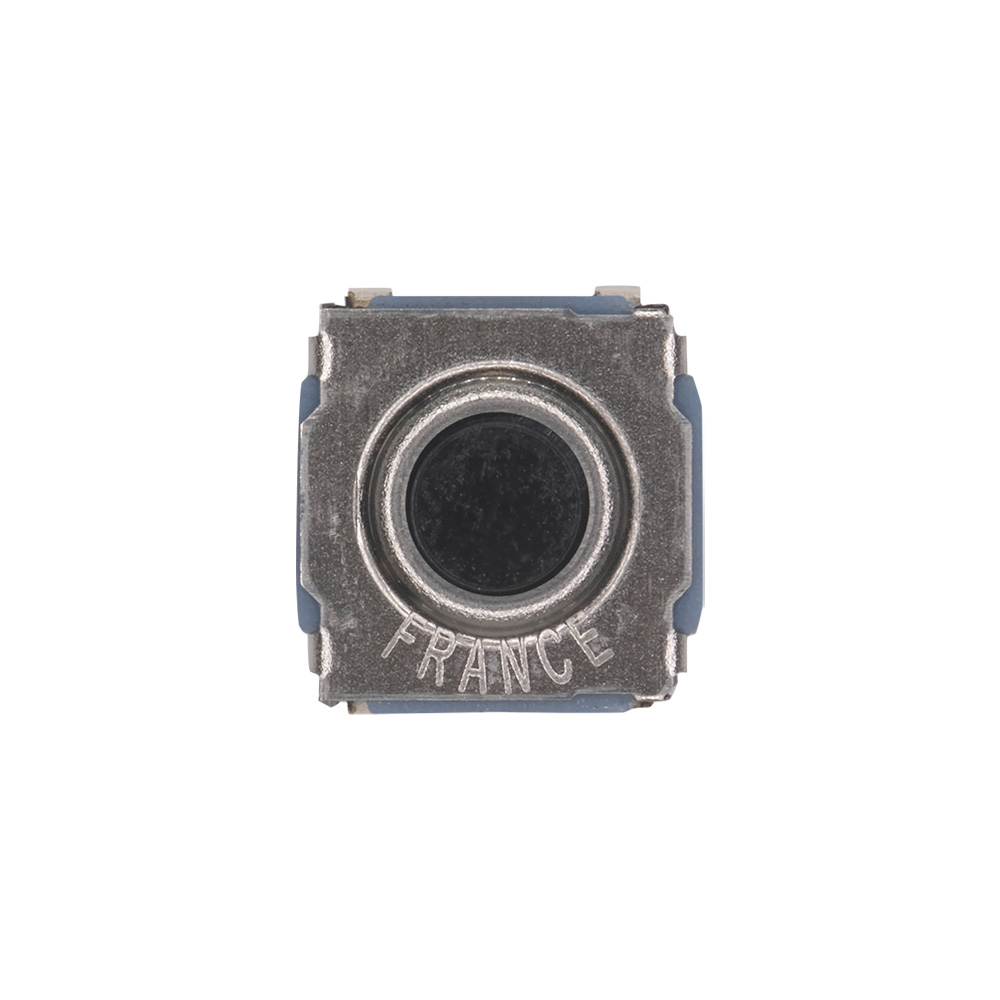

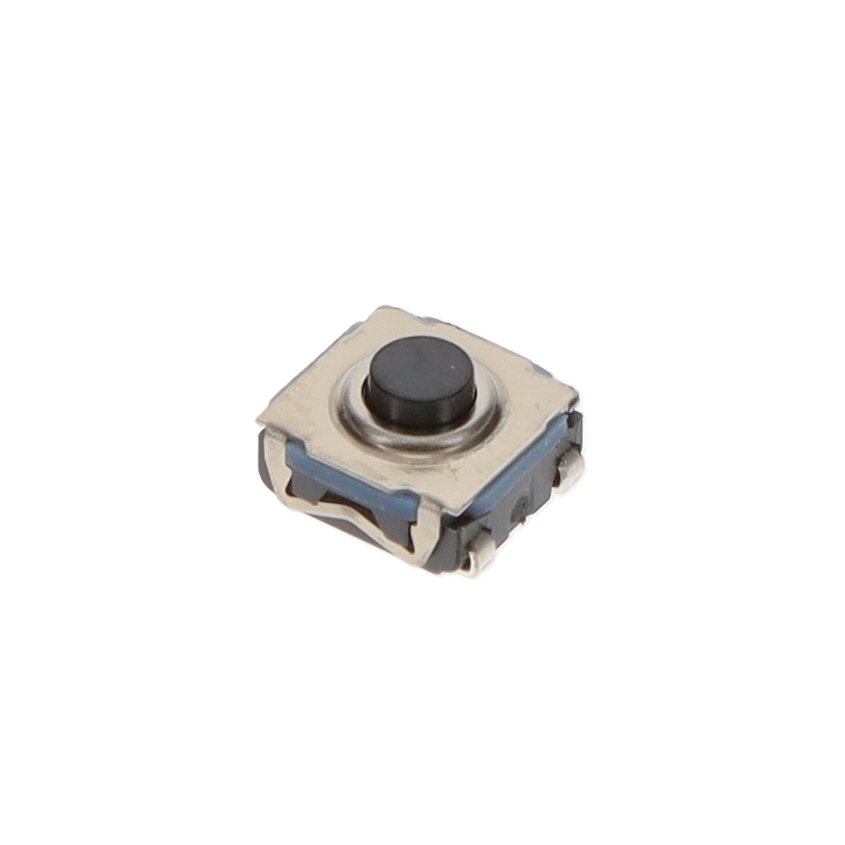

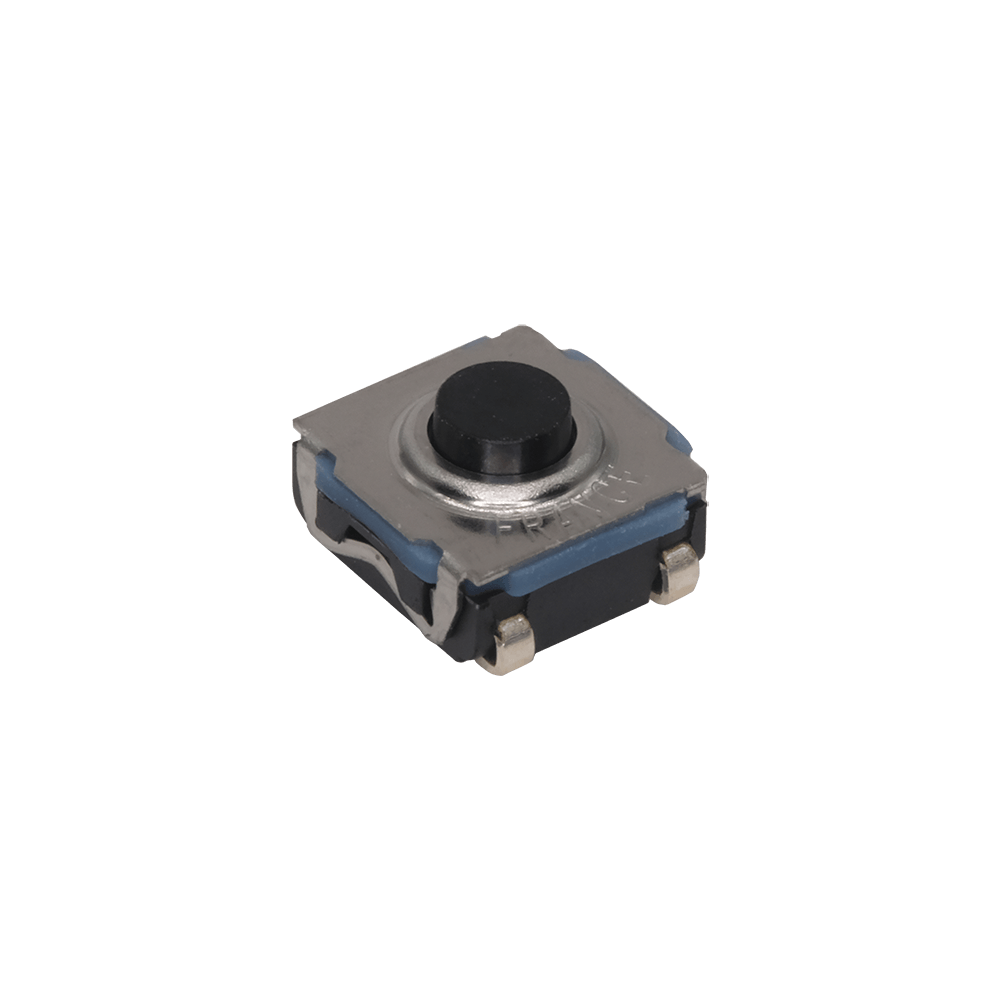

KSC11 tactile switch is a variant from the existing well known KSC series. From this base we enhanced features to reach outstanding proposal for the market. Using hard actuator, KSC11 offers a high tactile ratio without sacrificing the lifetime which lasts up to 3M cycles. With 6 x 6 mm compact size and standard height at 3.9 mm, KSC11 series features actuation forces from 1.6N to 5N versions. KSC11 series tactile switch will be mainly recommended for applications requiring high tactile ratio and long lifetime like avionics/ industrial consoles, gaming, drones, or any other demanding applications.
