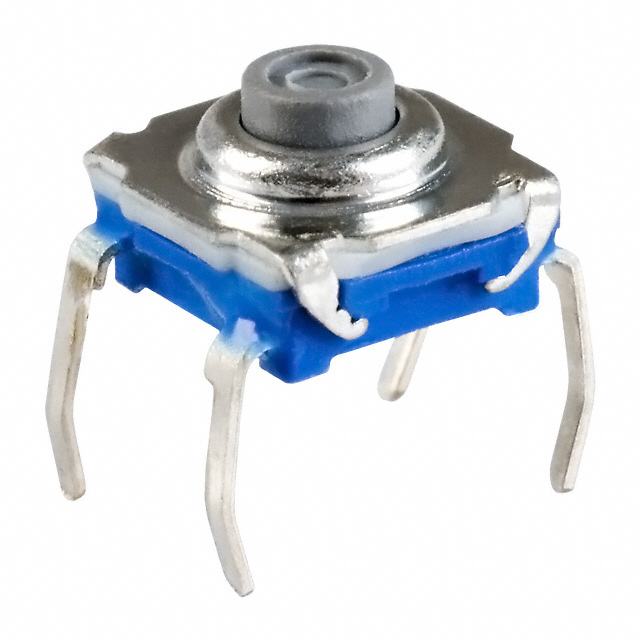

GS4.70 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Mechanical Life | Actuator Material | Operating Force | Circuit | Actuator Height off PCB, Vertical [z] | Mounting Type | Actuator Orientation | Switch Function | Contact Rating @ Voltage | Actuator Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Outline [y] | Outline [x] | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.3 mm | 400000 Cycles | Liquid Crystal Polymer (LCP) | 130 gf | SPST-NO | 4.7 mm | Through Hole | Top Actuated | Off-Mom | 0.05 A 50 VDC | Standard | PC Pin | 80 °C | -40 C | 7.2 mm | 7.2 mm | Non-Illuminated |
