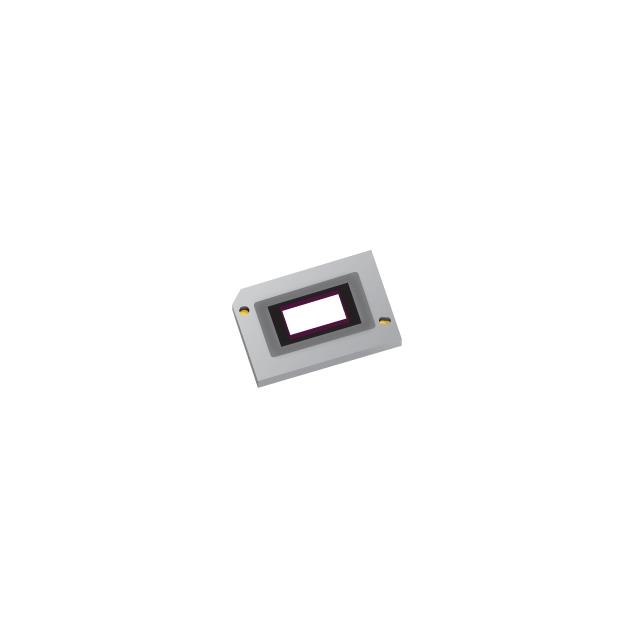

DLP5534-Q1 Series
DLP® automotive 0.55-inch 405nm digital micromirror device (DMD)
Manufacturer: Texas Instruments
Catalog
DLP® automotive 0.55-inch 405nm digital micromirror device (DMD)
Key Features
• Qualified for automotive applications–40°C to 105°C operating temperature range for DMD arraySupports 405-nm illumination sourcesThe DLP5534-Q1 automotive chipset includes:DLP5534-Q1 DMDDLPC230-Q1 DMD controllerTPS99000-Q1 system management and illumination controller0.55-inch diagonal micromirror array7.6-µm micromirror pitch±12° micromirror tilt angle (relative to flat state)Bottom illumination for optimal efficiency and optical engine sizeSupports 1152 × 576 input resolutionCompatible with LED or laser illumination600-MHz sub-LVDS DMD interface for low power and emission10-kHz DMD refresh rate over temperature extremesBuilt-in self test of DMD memory cellsQualified for automotive applications–40°C to 105°C operating temperature range for DMD arraySupports 405-nm illumination sourcesThe DLP5534-Q1 automotive chipset includes:DLP5534-Q1 DMDDLPC230-Q1 DMD controllerTPS99000-Q1 system management and illumination controller0.55-inch diagonal micromirror array7.6-µm micromirror pitch±12° micromirror tilt angle (relative to flat state)Bottom illumination for optimal efficiency and optical engine sizeSupports 1152 × 576 input resolutionCompatible with LED or laser illumination600-MHz sub-LVDS DMD interface for low power and emission10-kHz DMD refresh rate over temperature extremesBuilt-in self test of DMD memory cells
Description
AI
The DLP5534-Q1 automotive DMD, combined with the DLPC230-Q1 DMD controller and TPS99000-Q1 system management and illumination controller, provides the capability to achieve a high performance transparent window display projector. The chipset can be coupled with 405-nm illumination sources (e.g. LEDs or lasers) in an optical projection system to project onto windows embedded with emissive phosphor films. When these transparent emissive films are excited with 405-nm light from a DLP5534-Q1 projector, the window becomes a display emitting light in the visible spectrum. The DLP5534-Q1 has more than 3 times the optical throughput of the preceding DLP3034-Q1 automotive DMD enabling brighter and larger displays. In addition, this chipset enables high power optical systems with a wide dynamic range and fast switching speeds that do not vary with temperature.
The DLP5534-Q1 automotive DMD, combined with the DLPC230-Q1 DMD controller and TPS99000-Q1 system management and illumination controller, provides the capability to achieve a high performance transparent window display projector. The chipset can be coupled with 405-nm illumination sources (e.g. LEDs or lasers) in an optical projection system to project onto windows embedded with emissive phosphor films. When these transparent emissive films are excited with 405-nm light from a DLP5534-Q1 projector, the window becomes a display emitting light in the visible spectrum. The DLP5534-Q1 has more than 3 times the optical throughput of the preceding DLP3034-Q1 automotive DMD enabling brighter and larger displays. In addition, this chipset enables high power optical systems with a wide dynamic range and fast switching speeds that do not vary with temperature.
