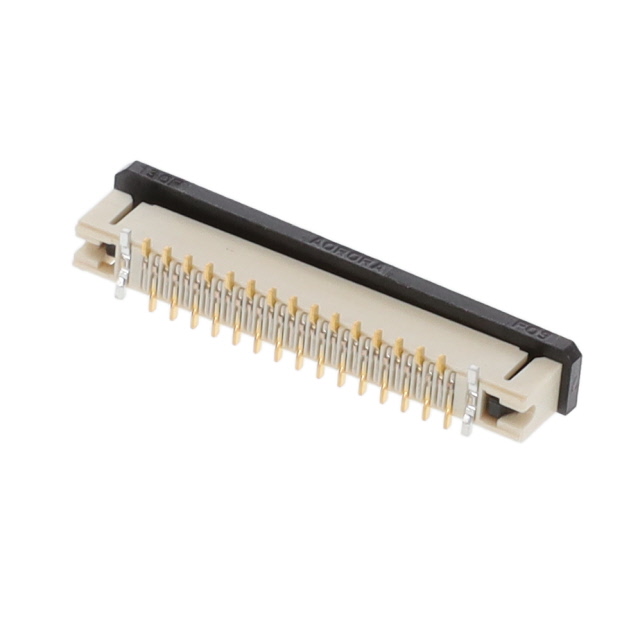

F314-1A7H1 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN FFC VERT 30POS 0.5MM SMD
| Part | Contact Finish Thickness | Contact Finish Thickness | Actuator Color | Mating Cycles | Current Rating (Amps) | Housing Color | Material Flammability Rating | Actuator Material | Cable End Type | Features | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Number of Positions | Mounting Type | FFC, FCB Thickness | Locking Feature | Contact Finish | Connector/Contact Type | Flat Flex Type | Contact Material | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 1.97 Áin | 0.05 Ám | Gray | 30 | 0.5 A | Natural | UL94 V-0 | Polyamide (PA9T) Nylon 9T Glass Filled Halogen Free | Notched | Solder Retention Zero Insertion Force (ZIF) | 50 V | -40 C | 105 ░C | Solder | 0.02 " | 0.5 mm | 0.167 in | 4.25 mm | 30 | Surface Mount | 0.33 mm | Slide Lock | Gold | Contacts Vertical - 1 Sided | FFC FPC | Phosphor Bronze | Glass Filled Liquid Crystal Polymer (LCP) |
