821-S1 Series

Manufacturer: Preci-Dip

Catalog

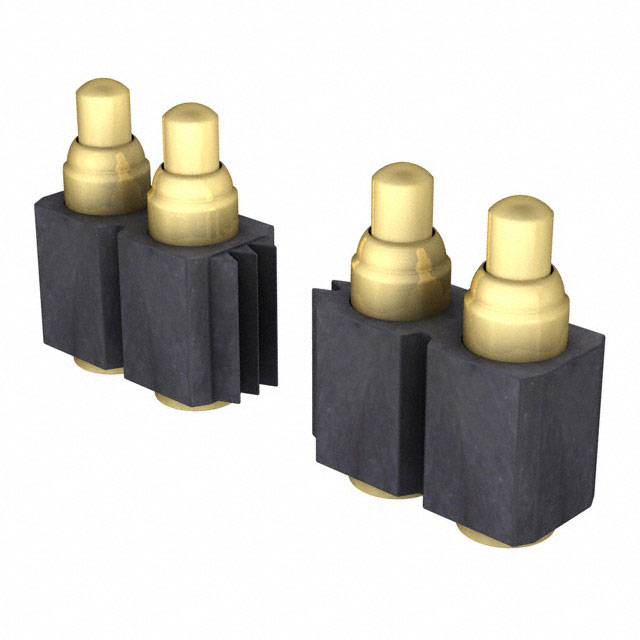

CONN SPRING PISTON 2POS SMD

Part	Number of Rows	Pitch [x]	Pitch [x]	Material	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts	Connector Type	Mounting Type	Contact Finish

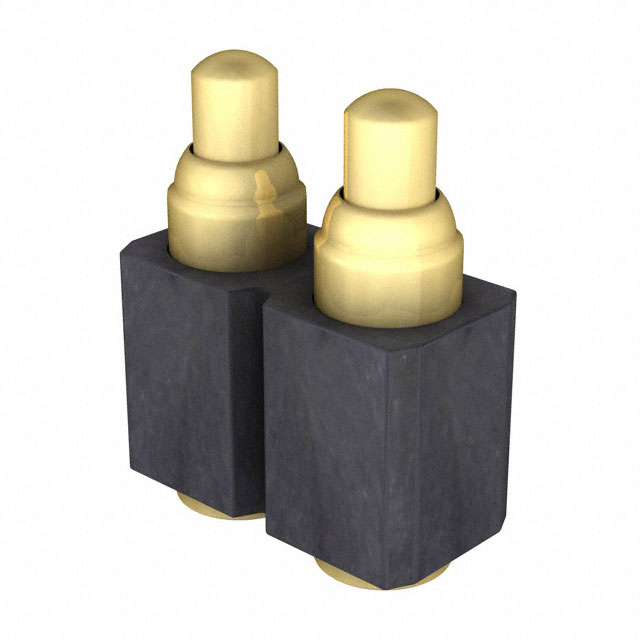

Preci-Dip 821-S1-002-30-014101	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	2	Piston	Surface Mount	Gold

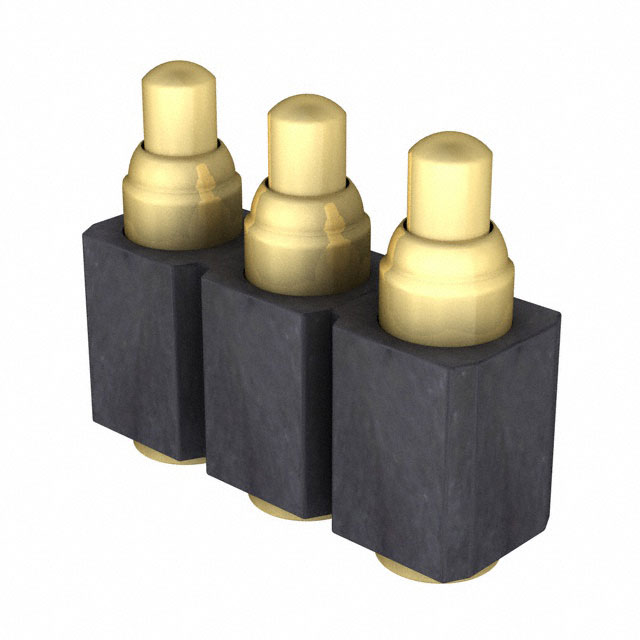

Preci-Dip 821-S1-003-30-015191	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	3	Piston	Surface Mount	Gold
Preci-Dip 821-S1-002-30-013101	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	2	Piston	Surface Mount	Gold
Preci-Dip 821-S1-009-30-012101	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	9	Piston	Surface Mount	Gold
Preci-Dip 821-S1-010-30-012101	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	10	Piston	Surface Mount	Gold
Preci-Dip 821-S1-007-30-013191	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	7	Piston	Surface Mount	Gold
Preci-Dip 821-S1-003-30-012101	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	3	Piston	Surface Mount	Gold
Preci-Dip 821-S1-010-30-014191	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	10	Piston	Surface Mount	Gold

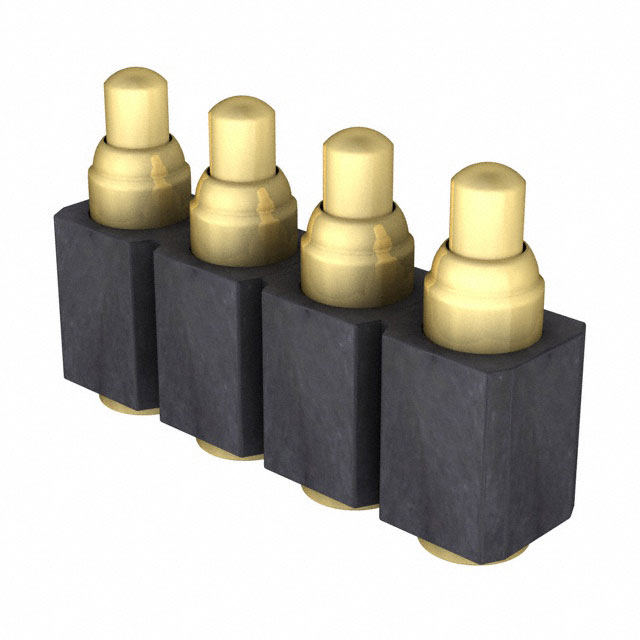

Preci-Dip 821-S1-004-30-013101	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	4	Piston	Surface Mount	Gold
Preci-Dip 821-S1-007-30-012101	1	0.079 in	2 mm	Brass Alloy	19.7 µin	0.5 µm	7	Piston	Surface Mount	Gold
