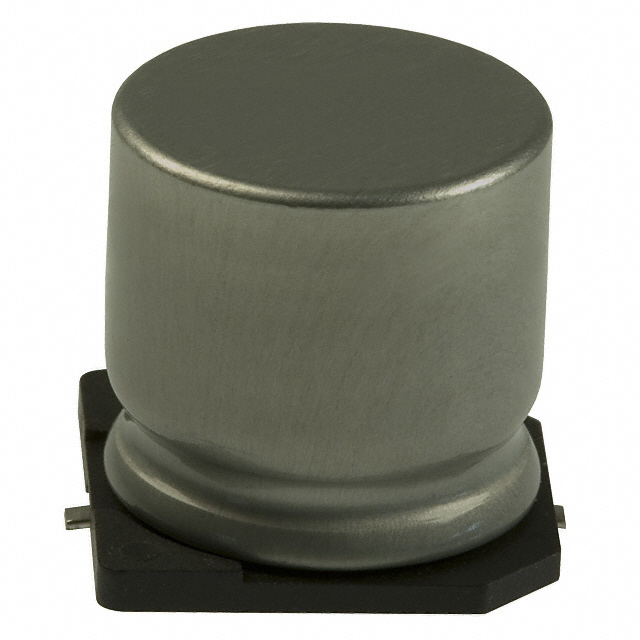

EEV-FK Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 150UF 20% 63V SMD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Voltage - Rated	Impedance	Mounting Type	Ripple Current @ Low Frequency	Package / Case	Lifetime @ Temp.	Ratings	Ripple Current @ High Frequency	Applications	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)

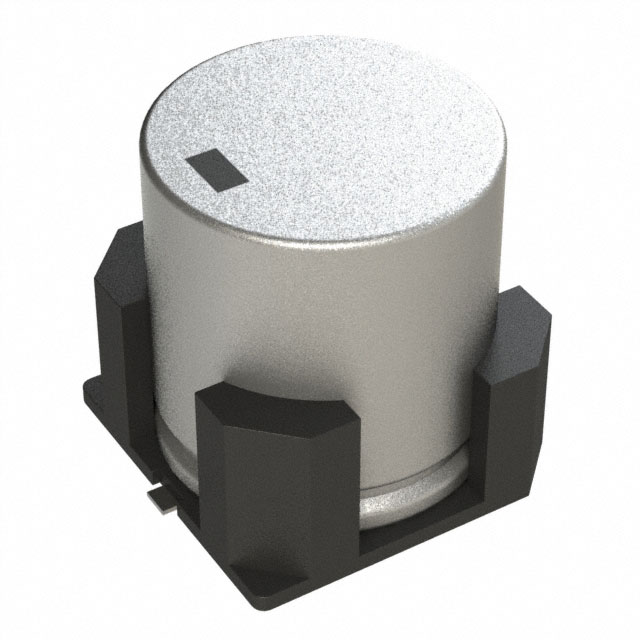

Panasonic Industrial Automation Sales EEV-FK1J151V	13.8 mm	0.543 in	150 µF	0.492 in	12.5 mm	Polar	105 ░C	-55 °C	13.5 mm	13.5 mm	0.531 in	0.531 in	63 V	160 mOhms	Surface Mount	600 mA	Radial Can - SMD	5000 Hrs	AEC-Q200	800 mA	Automotive	20 %
Panasonic Industrial Automation Sales EEV-FK1E220R	6.1 mm	0.24 in	22 µF	0.197 "	5 mm	Polar	105 ░C	-55 °C	5.3 mm	5.3 mm	0.209 in	0.209 in	25 VDC	700 mOhms	Surface Mount		Radial Can - SMD	2000 Hrs	AEC-Q200	160 mA	Automotive	20 %
Panasonic Industrial Automation Sales EEV-FK1H101P			100 µF	0.315 "	8 mm	Polar	105 ░C	-55 °C	8.3 mm	8.3 mm	0.327 "	0.327 in	50 VDC	340 mOhms	Surface Mount		Radial Can - SMD	2000 Hrs	AEC-Q200	350 mA	Automotive	20 %	0.413 in	10.5 mm
Panasonic Industrial Automation Sales EEV-FK2A101V	17 mm	0.669 in	100 µF	0.63 in	16 mm	Polar	105 ░C	-55 °C	17 mm	17 mm	0.669 in	0.669 in	100 V	170 mOhms	Surface Mount	594.8 mA	Radial Can - SMD	5000 Hrs	AEC-Q200	793 mA	Automotive	20 %

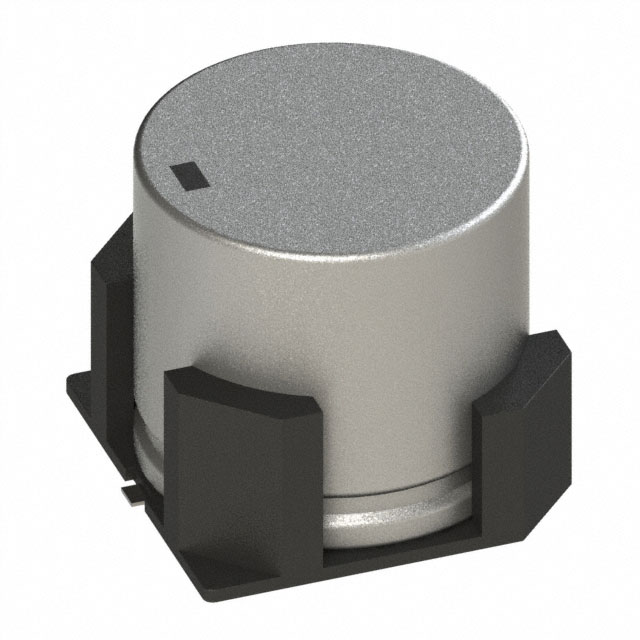

Panasonic Industrial Automation Sales EEV-FK2A221V	17 mm	0.669 in	220 µF	0.709 "	18 mm	Polar	105 ░C	-55 °C	19 mm	19 mm	0.748 in	0.748 in	100 V	153 mOhms	Surface Mount	687.8 mA	Radial Can - SMD	5000 Hrs	AEC-Q200	917 mA	Automotive	20 %
Panasonic Industrial Automation Sales EEV-FK1E471P			470 µF	0.394 in	10 mm	Polar	105 ░C	-55 °C	10.3 mm	10.3 mm	0.406 in	0.406 "	25 VDC	80 mOhms	Surface Mount		Radial Can - SMD	2000 Hrs	AEC-Q200	850 mA	Automotive	20 %	0.413 in	10.5 mm
Panasonic Industrial Automation Sales EEV-FK1E221GP			220 µF	0.315 "	8 mm	Polar	105 ░C	-55 °C	8.3 mm	8.3 mm	0.327 "	0.327 in	25 VDC	160 mOhms	Surface Mount	450 mA	Radial Can - SMD	5000 Hrs	AEC-Q200	600 mA	Automotive	20 %	0.413 in	10.5 mm
Panasonic Industrial Automation Sales EEV-FK1A472M	17 mm	0.669 in	4700 µF	0.63 in	16 mm	Polar	105 ░C	-55 °C	17 mm	17 mm	0.669 in	0.669 in	10 V	35 mOhms	Surface Mount	1.35 A	Radial Can - SMD	5000 Hrs	AEC-Q200	1.69 A	Automotive	20 %
Panasonic Industrial Automation Sales EEV-FK1A222Q			2200 µF	0.492 in	12.5 mm	Polar	105 ░C	-55 °C	13.5 mm	13.5 mm	0.531 in	0.531 in	10 V	60 mOhms	Surface Mount	825 mA	Radial Can - SMD	5000 Hrs	AEC-Q200	1.1 A	Automotive	20 %	0.551 "		14 mm
Panasonic Industrial Automation Sales EEV-FK1H330P	6.5 mm	0.256 in	33 ÁF	0.315 "	8 mm	Polar	105 ░C	-55 °C	8.3 mm	8.3 mm	0.327 "	0.327 in	50 VDC	680 mOhms	Surface Mount		Radial Can - SMD	2000 Hrs	AEC-Q200	195 mA	Automotive	20 %
