C6 Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 2.26"L X 1.61"W

Part	Weight	Weight	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Design	Material	Material Flammability Rating	Ratings	Height [z]	Height [z]	Container Type	Thickness	Thickness	Area (L x W)	Area (L x W)	Color

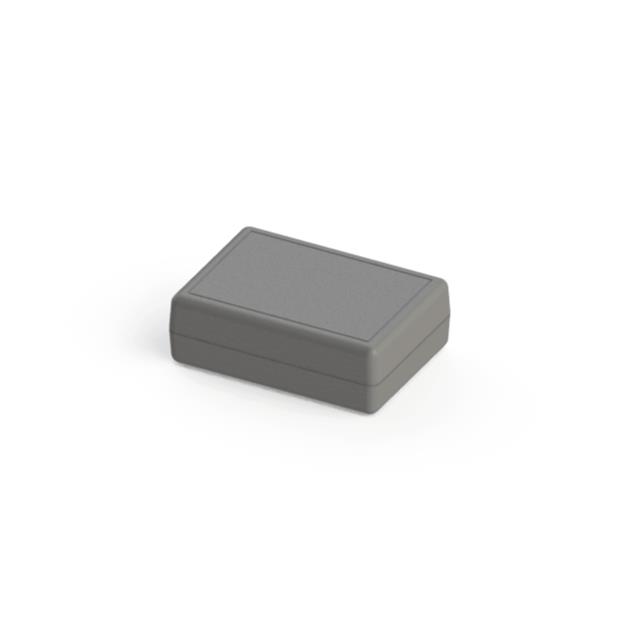

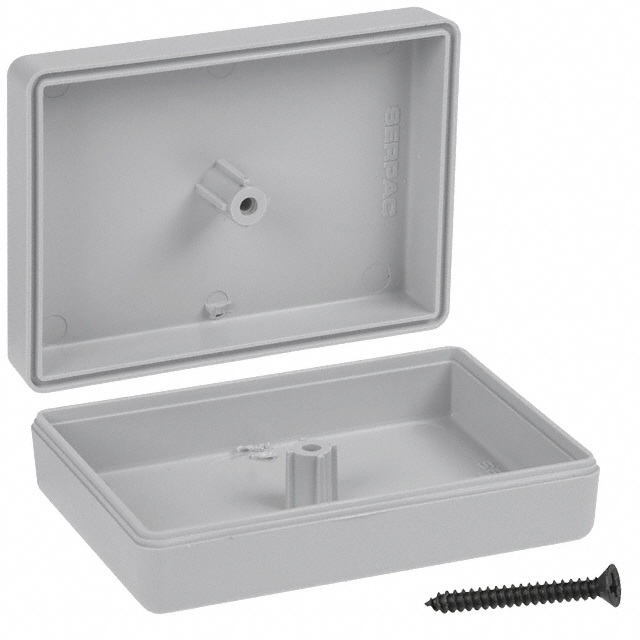

Serpac C6,GY	14.06 g	0.031 lb	1.61 in	40.89 mm	2.26 in	57.4 mm	Hand Held Split Sides	ABS Plastic	UL94 HB	IP40	0.75 in	19.05 mm	Box	2.54 mm	0.1 in	3.64 in²	23.5 cm²	Gray

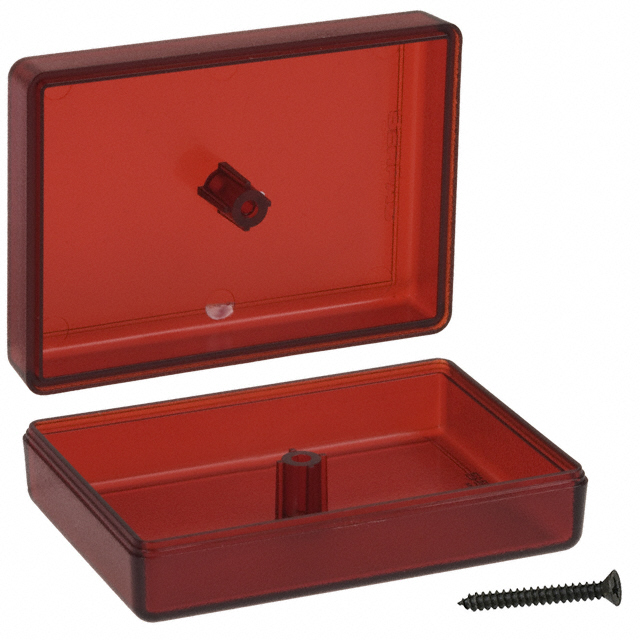

Serpac C6,TRRD	14.06 g	0.031 lb	1.61 in	40.89 mm	2.26 in	57.4 mm	Hand Held Split Sides	ABS Plastic	UL94 HB	IP40	0.75 in	19.05 mm	Box	1.52 mm	0.06 in	3.64 in²	23.5 cm²	Translucent - Red

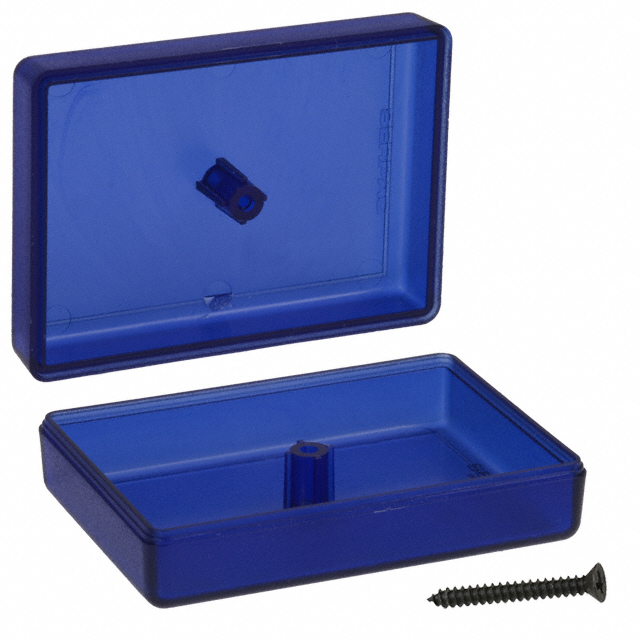

Serpac C6,TRBL	14.06 g	0.031 lb	1.61 in	40.89 mm	2.26 in	57.4 mm	Hand Held Split Sides	ABS Plastic	UL94 HB	IP40	0.75 in	19.05 mm	Box	1.52 mm	0.06 in	3.64 in²	23.5 cm²	Translucent - Blue

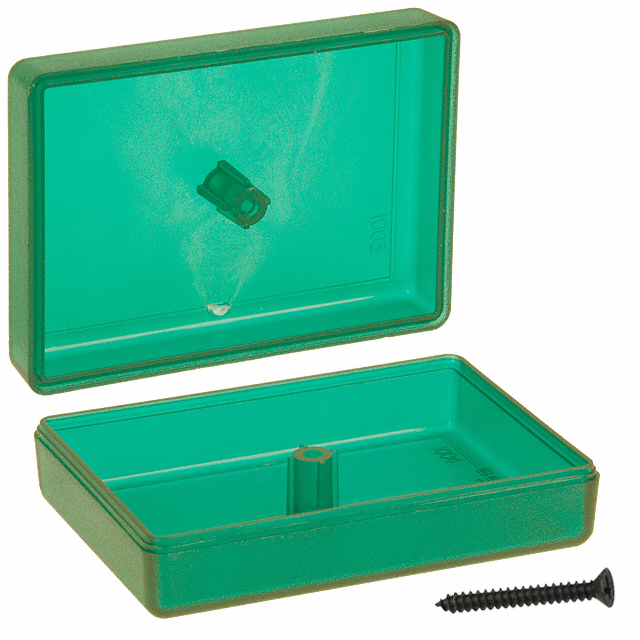

Serpac C6,TRGR	14.06 g	0.031 lb	1.61 in	40.89 mm	2.26 in	57.4 mm	Hand Held Split Sides	ABS Plastic	UL94 HB	IP40	0.75 in	19.05 mm	Box	1.52 mm	0.06 in	3.64 in²	23.5 cm²	Translucent - Green

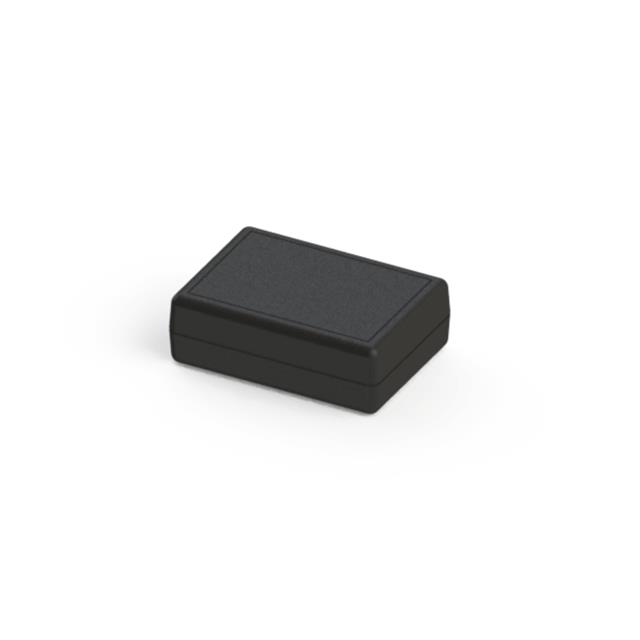

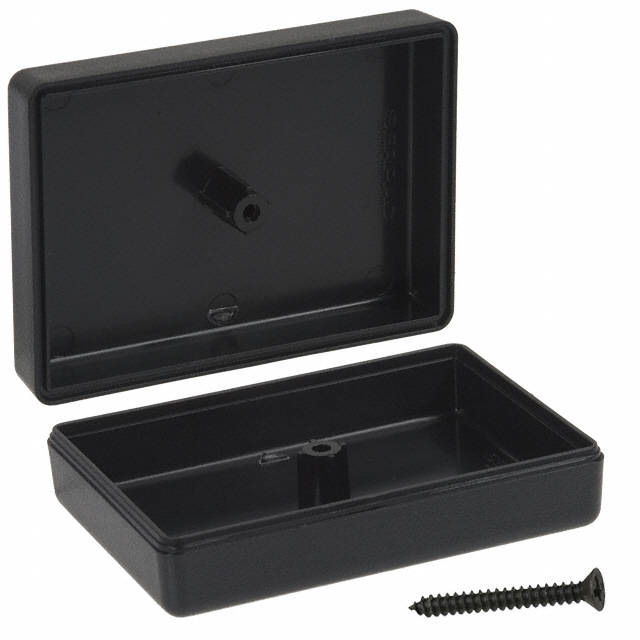

Serpac C6,BK	14.06 g	0.031 lb	1.61 in	40.89 mm	2.26 in	57.4 mm	Hand Held Split Sides	ABS Plastic	UL94 HB	IP40	0.75 in	19.05 mm	Box	2.54 mm	0.1 in	3.64 in²	23.5 cm²	Black
Serpac C6,TRGY	14.06 g	0.031 lb	1.61 in	40.89 mm	2.26 in	57.4 mm	Hand Held Split Sides	ABS Plastic	UL94 HB	IP40	0.75 in	19.05 mm	Box	1.52 mm	0.06 in	3.64 in²	23.5 cm²	Translucent - Gray

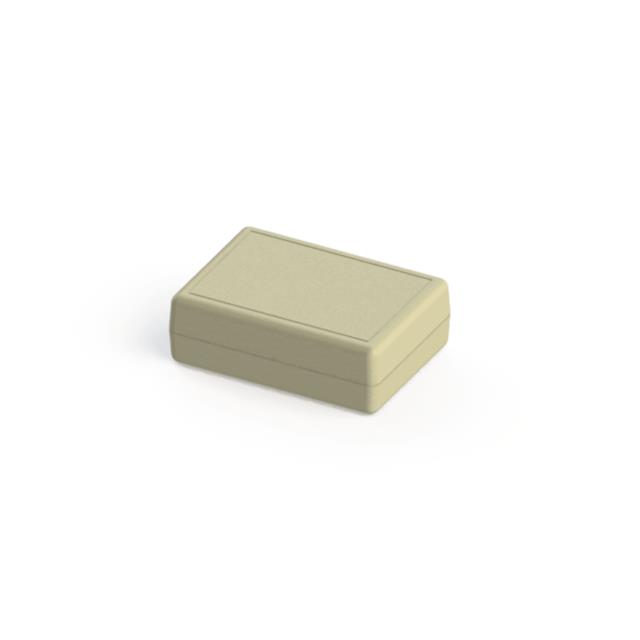

Serpac C6,AL	14.06 g	0.031 lb	1.61 in	40.89 mm	2.26 in	57.4 mm	Hand Held Split Sides	ABS Plastic	UL94 HB	IP40	0.75 in	19.05 mm	Box	2.54 mm	0.1 in	3.64 in²	23.5 cm²	Almond
