EN2C3M Series

Catalog

CIRCULAR CONNECTOR, EN2 SERIES, 3 CONTACTS, THERMOPLASTIC BODY

Part	Connector Type	Color	Ingress Protection	Contact Material	Contact Finish - Mating	Material Flammability Rating	Features	Shielding	Mounting Type	Current Rating (Amps)	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Insert Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Primary Material	Applications	Fastening Type	Voltage Rating	Termination
SWITCHCRAFT/CONXALL EN2C3M20G3	Plug Male Pins	Black	IP66 IP67 IP68	Copper Alloy	Gold	UL94 V-0	Backshell Coupling Nut	Unshielded	Free Hanging (In-Line)	2 A	0.18 "	5.59 mm	4.57 mm	0.22 in	Elastomer	Keyed	85 °C	-40 C	Thermoplastic	Plastic	Communication Systems Industrial Marine Medical	Bayonet Lock	125 VAC	Crimp Solder Cup
SWITCHCRAFT/CONXALL EN2C3M20G1	Plug Male Pins	Black	IP66 IP67 IP68	Copper Alloy	Gold	UL94 V-0	Backshell Coupling Nut	Unshielded	Free Hanging (In-Line)	2 A	0.1 "	3.56 mm	2.54 mm	0.14 in	Elastomer	Keyed	85 °C	-40 C	Thermoplastic	Plastic	Communication Systems Industrial Marine Medical	Bayonet Lock	125 VAC	Crimp Solder Cup

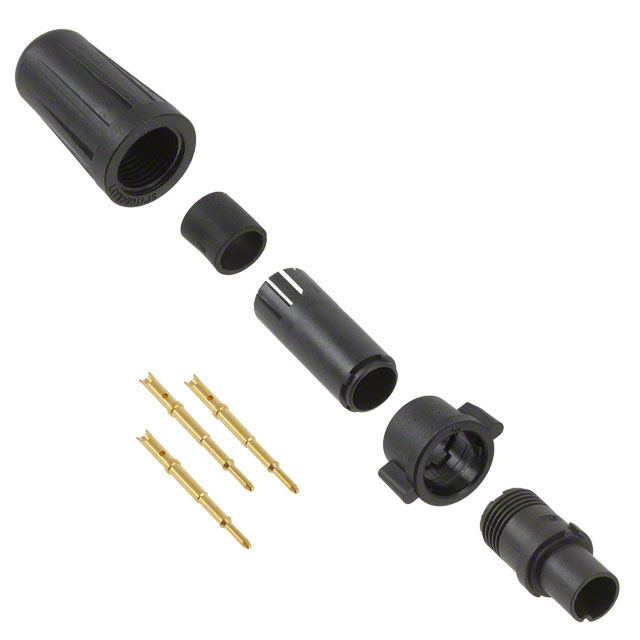

SWITCHCRAFT/CONXALL EN2C3M20G3W	Plug Male Pins	Black	IP66 IP67 IP68	Copper Alloy	Gold	UL94 V-0	Backshell Coupling Nut Winged	Unshielded	Free Hanging (In-Line)	2 A	0.18 "	5.59 mm	4.57 mm	0.22 in	Elastomer	Keyed	85 °C	-40 C	Thermoplastic	Plastic	Communication Systems Industrial Marine Medical	Bayonet Lock	125 VAC	Crimp Solder Cup

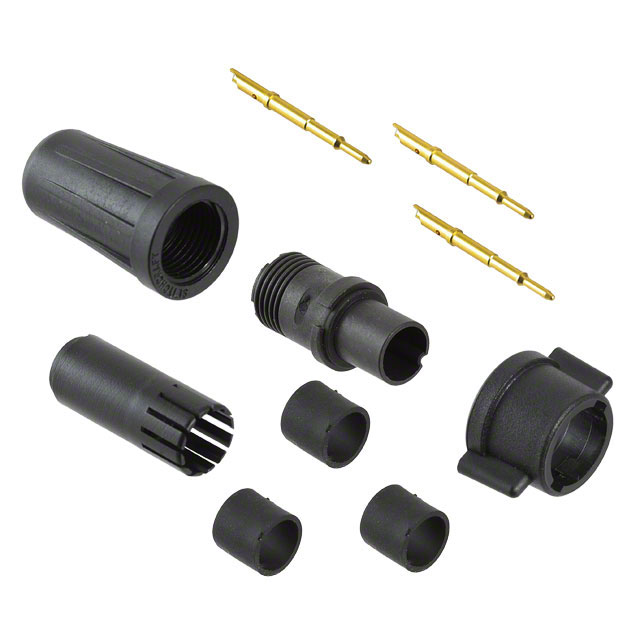

SWITCHCRAFT/CONXALL EN2C3M20DCW	Plug Male Pins	Black	IP66 IP67 IP68	Copper Alloy	Gold	UL94 V-0	Backshell Coupling Nut Winged	Unshielded	Free Hanging (In-Line)	2 A					Elastomer	Keyed	85 °C	-40 C	Thermoplastic	Plastic	Communication Systems Industrial Marine Medical	Bayonet Lock	125 VAC	Crimp Solder Cup

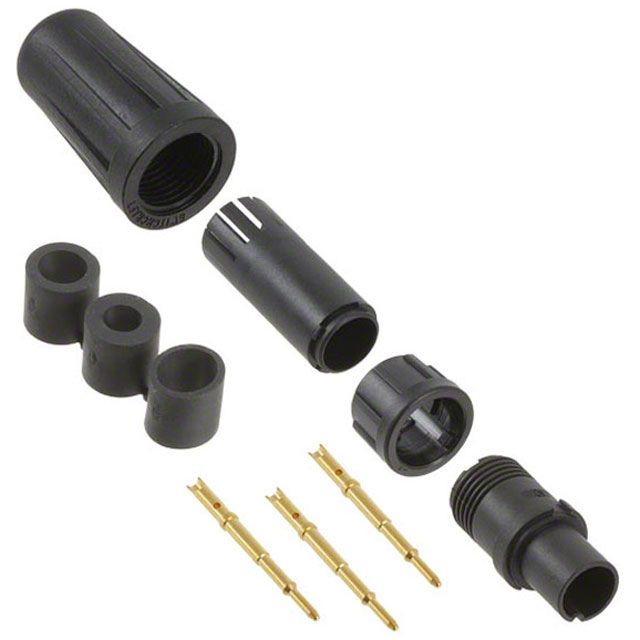

SWITCHCRAFT/CONXALL EN2C3M20DC	Plug Male Pins	Black	IP66 IP67 IP68	Copper Alloy	Gold	UL94 V-0	Backshell Coupling Nut	Unshielded	Free Hanging (In-Line)	2 A					Elastomer	Keyed	85 °C	-40 C	Thermoplastic	Plastic	Communication Systems Industrial Marine Medical	Bayonet Lock	125 VAC	Crimp Solder Cup

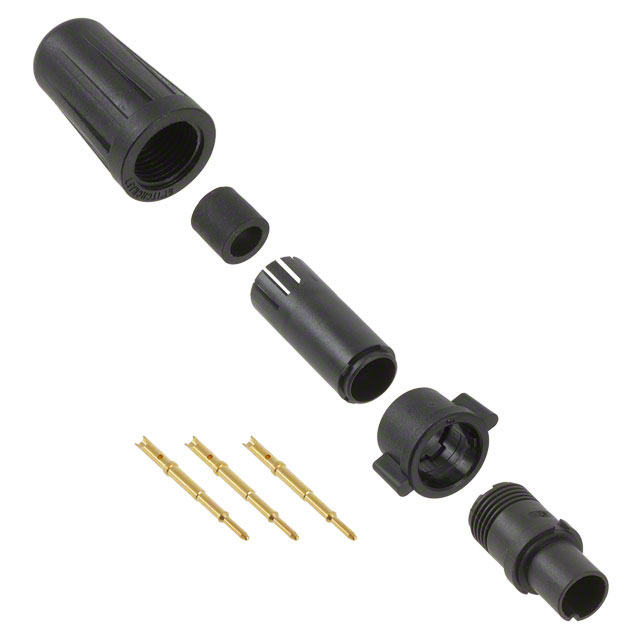

SWITCHCRAFT/CONXALL EN2C3M20G2W	Plug Male Pins	Black	IP66 IP67 IP68	Copper Alloy	Gold	UL94 V-0	Backshell Coupling Nut Winged	Unshielded	Free Hanging (In-Line)	2 A	0.14 in	4.57 mm	3.56 mm	0.18 "	Elastomer	Keyed	85 °C	-40 C	Thermoplastic	Plastic	Communication Systems Industrial Marine Medical	Bayonet Lock	125 VAC	Crimp Solder Cup
