C32xx Series
Manufacturer: Crystek Corporation
Beta
⌘K

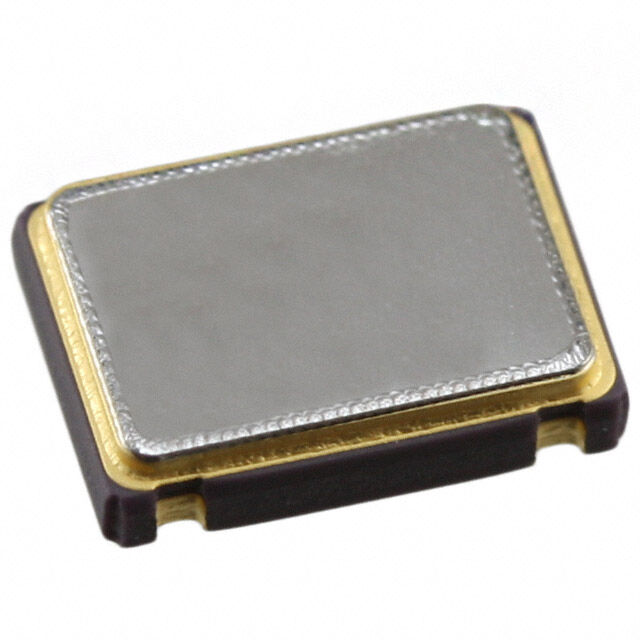

XTAL OSC XO 30.0000MHZ HCMOS TTL
| Part | Type | Frequency Stability | Function | Current - Supply (Max) [Max] | Frequency | Package / Case | Output | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Base Resonator [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Crystek Corporation | XO (Standard) | 100 ppm | Enable/Disable | 60 mA | 30 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 85 °C | -40 C | Crystal | Surface Mount |
Crystek Corporation | XO (Standard) | 25 ppm | Enable/Disable | 60 mA | 12.288 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 85 °C | -40 C | Crystal | Surface Mount |
Crystek Corporation | XO (Standard) | 25 ppm | Enable/Disable | 60 mA | 24 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 70 °C | 0 °C | Crystal | Surface Mount |
Crystek Corporation | XO (Standard) | 50 ppm | Enable/Disable | 60 mA | 51.84 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 70 °C | 0 °C | Crystal | Surface Mount |
Crystek Corporation | XO (Standard) | 25 ppm | Enable/Disable | 60 mA | 16.384 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 85 °C | -40 C | Crystal | Surface Mount |
Crystek Corporation | XO (Standard) | 100 ppm | Enable/Disable | 60 mA | 32 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 85 °C | -40 C | Crystal | Surface Mount |
Crystek Corporation | XO (Standard) | 25 ppm | Enable/Disable | 60 mA | 12.288 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 70 °C | 0 °C | Crystal | Surface Mount |
Crystek Corporation | XO (Standard) | 25 ppm | Enable/Disable | 60 mA | 1.544 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 85 °C | -40 C | Crystal | Surface Mount |
Crystek Corporation | XO (Standard) | 100 ppm | Enable/Disable | 60 mA | 33 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 70 °C | 0 °C | Crystal | Surface Mount |
 Crystek Corporation | XO (Standard) | 25 ppm | Enable/Disable | 60 mA | 106.25 MHz | 4-SMD No Lead | HCMOS TTL | 1.8 mm | 0.071 in | 5.2 mm | 0.205 " | 0.283 " | 7.2 mm | 70 °C | 0 °C | Crystal | Surface Mount |
