CNB.M1 Series
Manufacturer: LEMO
Beta
⌘K

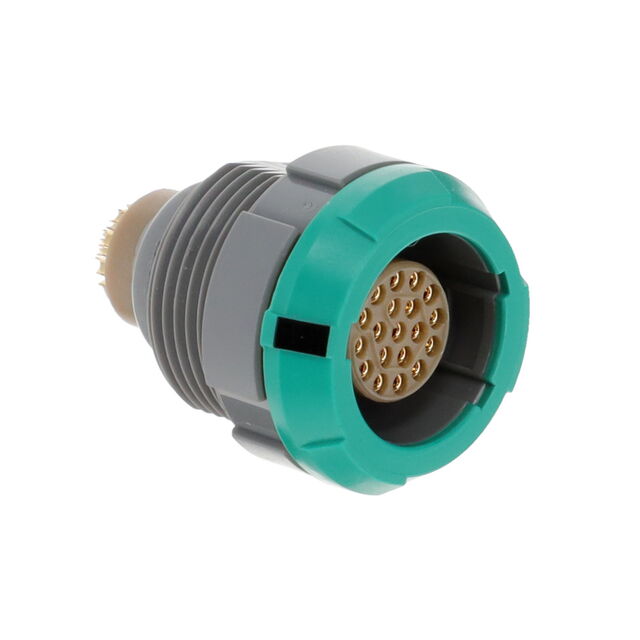

CONN RCPT FMALE 19P SOLDER CUP
| Part | Insert Material | Primary Material | Current Rating (Amps) | Applications | Shielding | Mounting Type | Connector Type | Number of Positions | Shell Material | Ingress Protection | Orientation | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Finish - Mating | Color | Mounting Feature | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Polyetheretherketone (PEEK) | Plastic | 5 A | Automotive Industrial Medical Testing Equipment & Measurement | Unshielded | Panel Mount | Receptacle Female Sockets | 19 | Polysulfone (PSU) | IP66 - Dust Tight Water Resistant | B | M19 | 150 °C | -50 °C | Detent Lock Push-Pull | Gold | Gray Green | Bulkhead - Rear Side Nut | |
LEMO | Polyetheretherketone (PEEK) | Plastic | 6 A | Automotive Industrial Medical Testing Equipment & Measurement | Unshielded | Panel Mount Through Hole | Receptacle Female Sockets | 16 | Polysulfone (PSU) | IP66 - Dust Tight Water Resistant | B | M16 | 150 °C | -50 °C | Detent Lock Push-Pull | Gold | Gray | Front and Rear Side Nut | Solder |
LEMO | Polyetheretherketone (PEEK) | Plastic | 5 A | Automotive Industrial Medical Testing Equipment & Measurement | Unshielded | Panel Mount | Receptacle Female Sockets | 19 | Polysulfone (PSU) | IP66 - Dust Tight Water Resistant | B | M19 | 150 °C | -50 °C | Detent Lock Push-Pull | Gold | Gray Red | Bulkhead - Rear Side Nut | |
LEMO | Polyetheretherketone (PEEK) | Plastic | 5 A | Automotive Industrial Medical Testing Equipment & Measurement | Unshielded | Panel Mount | Receptacle Female Sockets | 19 | Polysulfone (PSU) | IP66 - Dust Tight Water Resistant | B | M19 | 150 °C | -50 °C | Detent Lock Push-Pull | Gold | Gray Yellow | Bulkhead - Rear Side Nut |
