UT Series

Catalog

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC COOLER, HIGH HEAT PUMP DENSITY, EPOXY PERIMETER SEAL, 63.8 W

Part	Operating Temperature	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Features	Voltage - Max [Max]	Resistance	Qmax @ Th	Current - Max [Max]	Number of Stages	Delta Tmax @ Th	Height
Laird Thermal Systems, Inc. 430745-515	80 °C	24.56 mm	26.92 mm	1.96 mm	Lead Wires Sealed - Epoxy	14.4 V	1.68 Ohms	69 W	7.9 A	1	69 °C

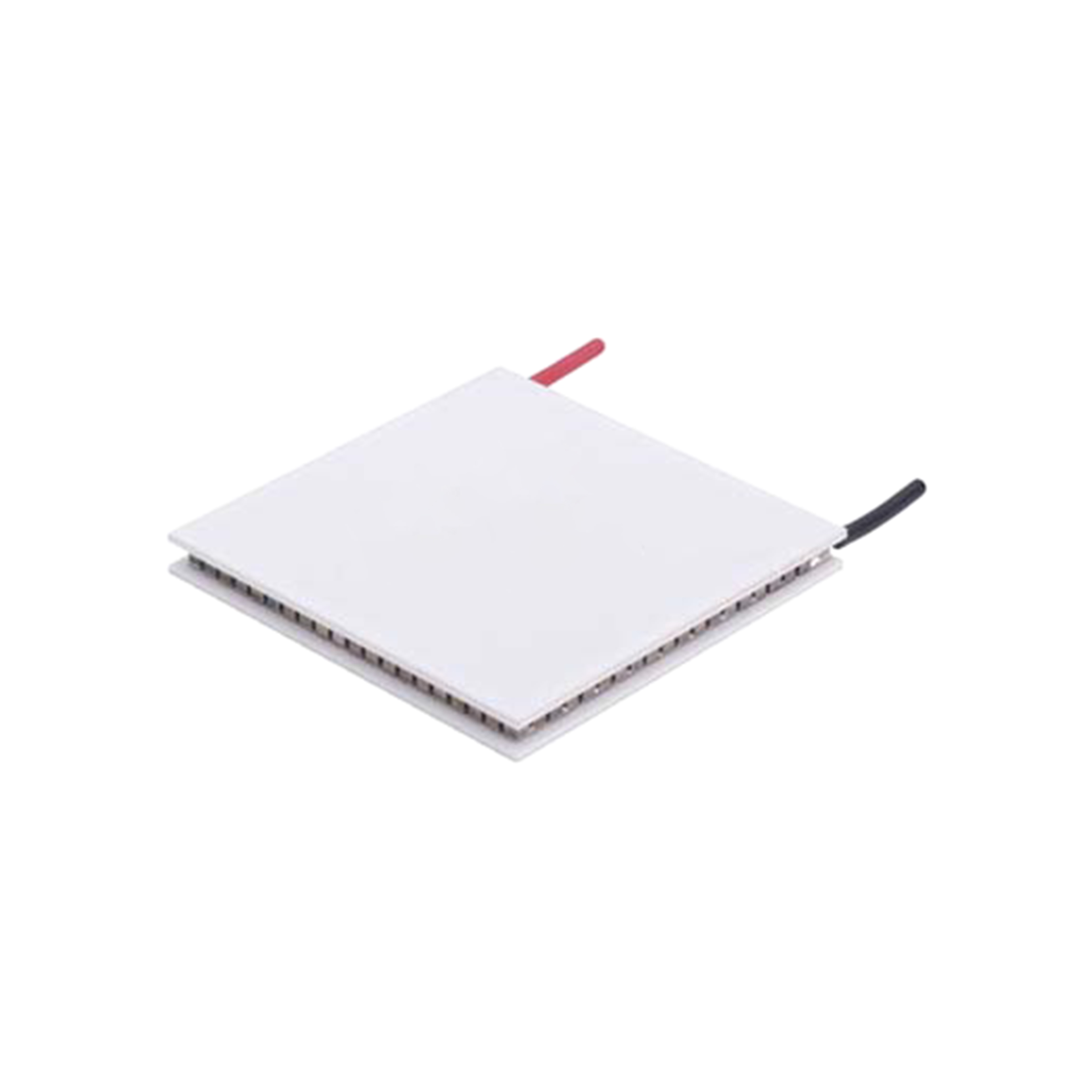

Laird Thermal Systems, Inc. 430874-302

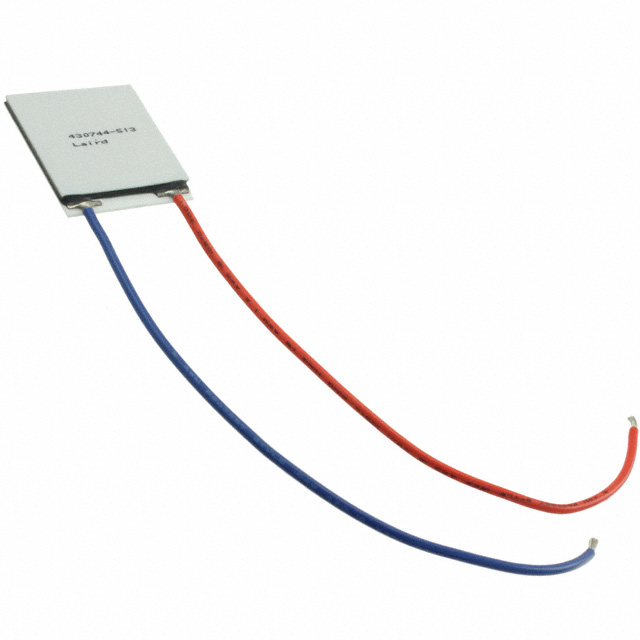

Laird Thermal Systems, Inc. 430744-513	80 °C	30 mm	34 mm	2.56 mm	Lead Wires Sealed - Epoxy	14.5 V	1.67 Ohms	69 W	8 A	1	67 °C
Laird Thermal Systems, Inc. 430759-507	80 °C	30 mm	34 mm		Lapped Lead Wires	14.5 V	1.2 Ohms		11.1 A	1	67 °C	2.41 mm

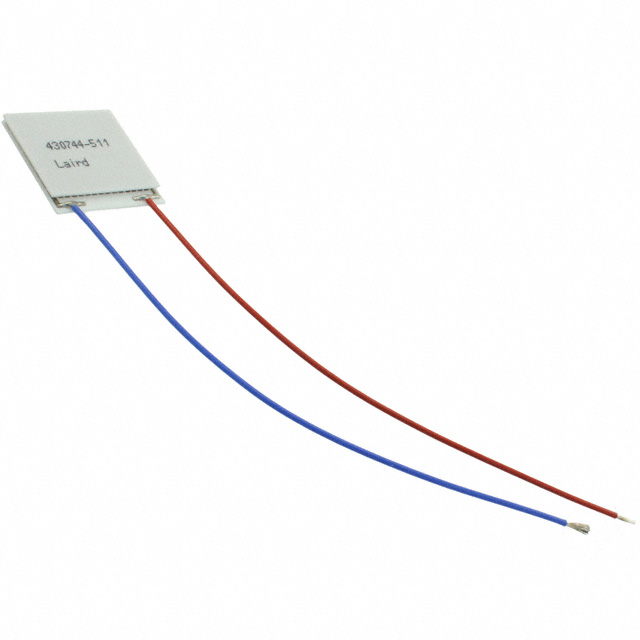

Laird Thermal Systems, Inc. 430744-511	80 °C	30 mm	34 mm	2.56 mm	Lead Wires Non-Sealed	14.5 V	1.67 Ohms	69 W	8 A	1	67 °C
