IPW65R099 Series
Manufacturer: INFINEON
Beta
⌘K

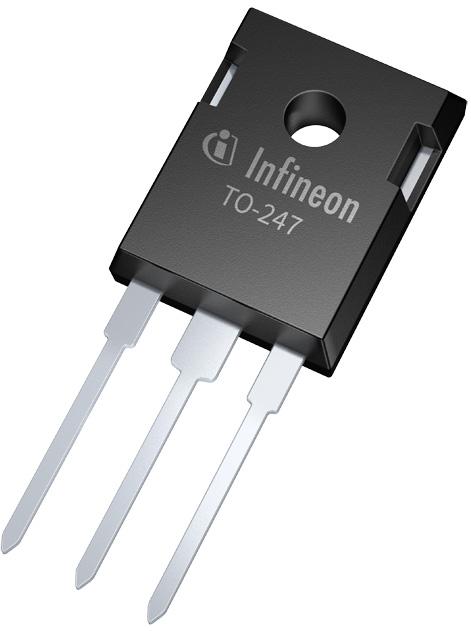

COOLMOS™ C6 N-CHANNEL SUPERJUNCTION MOSFET 650 V ; TO-247 PACKAGE; 99 MOHM;
| Part | Package / Case | Rds On (Max) @ Id, Vgs | Operating Temperature [Max] | Operating Temperature [Min] | Gate Charge (Qg) (Max) @ Vgs | FET Type | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Mounting Type | Current - Continuous Drain (Id) @ 25°C | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Power Dissipation (Max) [Max] | Technology | Supplier Device Package | Input Capacitance (Ciss) (Max) @ Vds [Max] | Qualification | Grade | Input Capacitance (Ciss) (Max) @ Vds |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | TO-247-3 | 99 mOhm | 150 °C | -55 °C | 127 nC | N-Channel | 20 V | 10 V | Through Hole | 38 A | 3.5 V | 650 V | 278 W | MOSFET (Metal Oxide) | PG-TO247-3-1 | 2780 pF | |||
 INFINEON | TO-247-3 | 99 mOhm | 150 °C | -40 °C | 53 nC | N-Channel | 20 V | 10 V | Through Hole | 24 A | 4.5 V | 650 V | 127 W | MOSFET (Metal Oxide) | PG-TO247-3-41 | AEC-Q101 | Automotive | 2513 pF |
