BD63536FJ Series

Step-down, High-efficiency Switching Regulators (Controller type)

Catalog

Step-down, High-efficiency Switching Regulators (Controller type)

Part	Output Configuration	Output Phases	Topology	Number of Outputs	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Supplier Device Package	Function	Frequency - Switching [Max]	Mounting Type	Package / Case	Package / Case	Package / Case	Clock Sync	Output Type	Synchronous Rectifier
Rohm Semiconductor BD63536FJ-E2	Positive	1	Buck	1	Current Limit Frequency Control Soft Start	85 °C	-25 °C	3 V	30 V	8-SOP-J	Step-Down	300 kHz	Surface Mount	0.154 in	8-SOIC	3.9 mm		Transistor Driver

Catalog

Step-down, High-efficiency Switching Regulators (Controller type)

Description

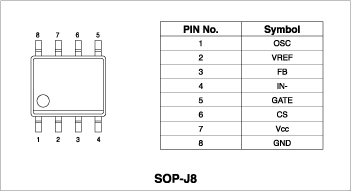

The BD63536FJ is a gate direct drive switching regulator operational at a power supply voltage from 3V. This regulator uses a compact package SOP-J8 and operates as a switching regulator for the voltage control type of step-down DC/DC converter. The regulator features reliable design with ±1% reference voltage accuracy, built-in current limit function (±4%), and a variety of built-in protection circuits.
