PNS Series

Catalog

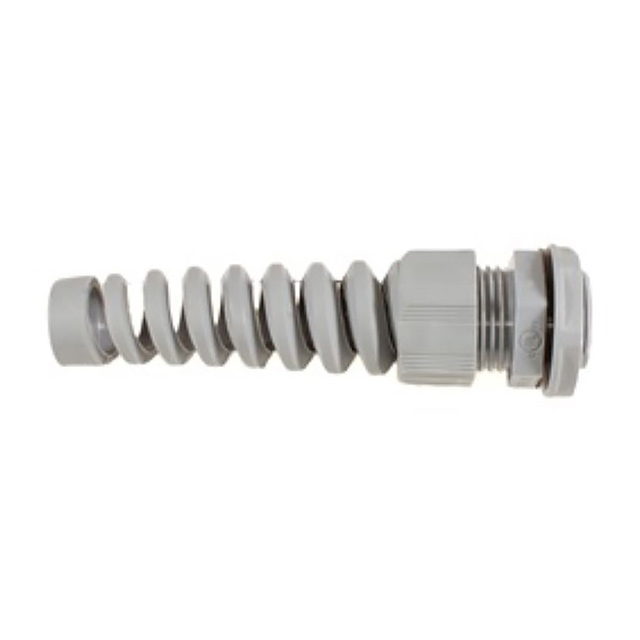

CABLE GLANDS, STRAIN RELIEFS & CORD GRIPS CABLE PROTECTION THREAD LENGTH 0.591 INCH CLAMP RNG 0.236-0.472 INCH - SLATE

Part	Ingress Protection	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Thread Length	Thread Length	Type	Material	Panel Hole Size	Panel Hole Size	Color	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
ALPHA WIRE PNS1/2 SL080	IP66 IP68	0.5	12 mm	0.472 in	Gasket Nut Strain Relief	0.591 in	15 mm	Cable Gland	Polyamide (PA) Nylon	21.3 mm	0.84 in	Gray	-20 ░C	100 °C	6 mm	0.236 in
ALPHA WIRE PNS3/4 BK080	IP66 IP68	0.75 "	18.01 mm	0.709 in	Gasket Nut Strain Relief	0.591 in	15 mm	Cable Gland	Polyamide (PA) Nylon	26.7 mm	1.05 in	Black	-20 ░C	100 °C			13 mm	0.512 in
