207496 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

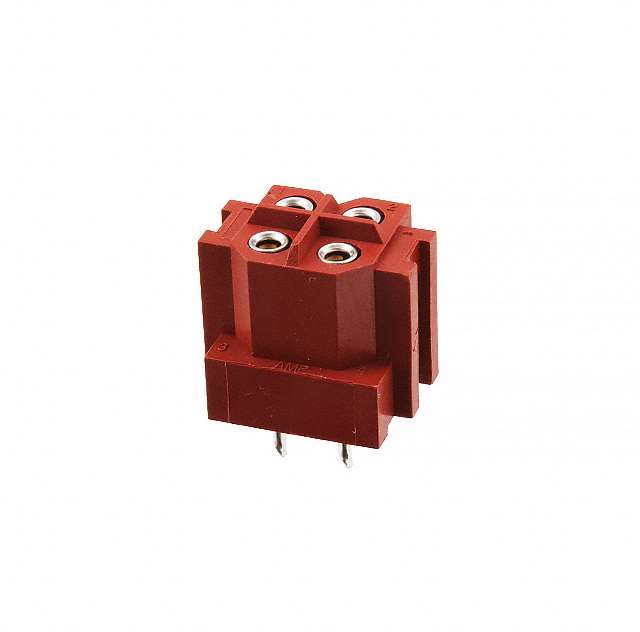

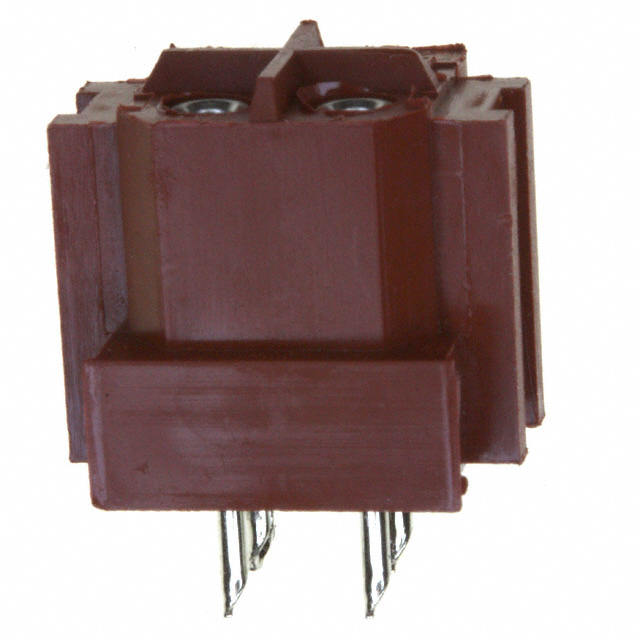

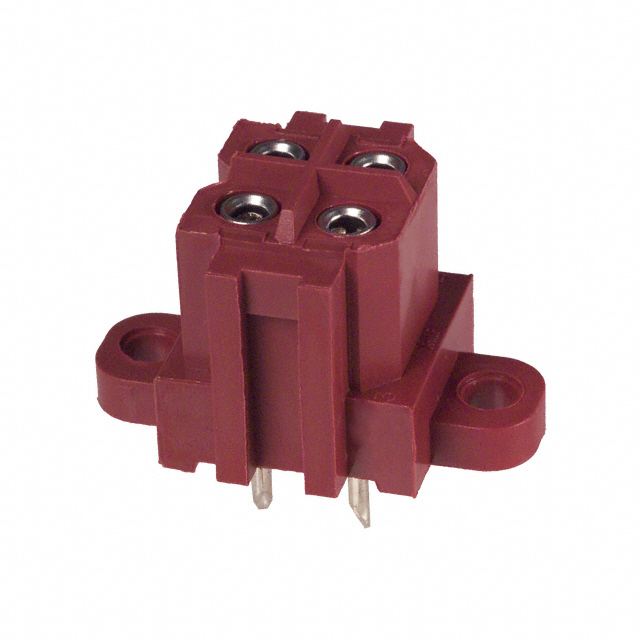

CONN HDR 4POS 0.197 GOLD PCB
| Part | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Contact Material | Fastening Type | Connector Type | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Current Rating (Amps) | Features | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Insulation Color | Pitch - Mating | Pitch - Mating | Style | Voltage Rating | Contact Type | Contact Finish - Post | Contact Shape | Mounting Type | Material Flammability Rating | Contact Finish - Mating | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Solder | 0.181 in | 4.6 mm | 2 | Phosphor Bronze | Latch Holder | Header | 0.565 in | 14.35 mm | 30 Áin | 0.76 Ám | 130 °C | -55 °C | Nylon Polyamide (PA) | 7.5 A | Mounting Flange | 5 mm | 0.197 in | All | Black Red | 5 mm | 0.197 " | Board to Cable/Wire | 600 V | Female Socket | Tin-Lead | Circular | Through Hole | UL94 V-0 | Gold | 4 | 150 Áin | 3.81 Ám |
TE Connectivity Raychem Cable Protection | Solder | 0.181 in | 4.6 mm | 2 | Phosphor Bronze | Latch Holder | Header | 0.565 in | 14.35 mm | 30 Áin | 0.76 Ám | 130 °C | -55 °C | Nylon Polyamide (PA) | 7.5 A | Mounting Flange | 5 mm | 0.197 in | All | Black Red | 5 mm | 0.197 " | Board to Cable/Wire | 600 V | Female Socket | Tin | Circular | Through Hole | UL94 V-0 | Gold | 4 | 150 Áin | 3.81 Ám |
 TE Connectivity Raychem Cable Protection | Solder | 0.181 in | 4.6 mm | 2 | Phosphor Bronze | Latch Holder | Header | 0.565 in | 14.35 mm | 30 Áin | 0.76 Ám | 130 °C | -55 °C | Nylon Polyamide (PA) | 7.5 A | 5 mm | 0.197 in | All | Black Red | 5 mm | 0.197 " | Board to Cable/Wire | 600 V | Female Socket | Tin | Circular | Through Hole | UL94 V-0 | Gold | 4 | 150 Áin | 3.81 Ám | |
 TE Connectivity Raychem Cable Protection | Solder | 0.181 in | 4.6 mm | 2 | Phosphor Bronze | Latch Holder | Header | 0.565 in | 14.35 mm | 150 Áin | 3.81 Ám | 130 °C | -55 °C | Nylon Polyamide (PA) | 7.5 A | 5 mm | 0.197 in | All | Black Red | 5 mm | 0.197 " | Board to Cable/Wire | 600 V | Female Socket | Tin-Lead | Circular | Through Hole | UL94 V-0 | Tin-Lead | 4 | 150 Áin | 3.81 Ám |
