A3AT Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSH SPST-NO 6A 125V

Part	Mechanical Life	Electrical Life	Ingress Protection	Voltage Rating - AC	Circuit	Actuator Type	Termination Style	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Actuator Marking	Color - Actuator/Cap	Switch Function	Illumination Type, Color	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]

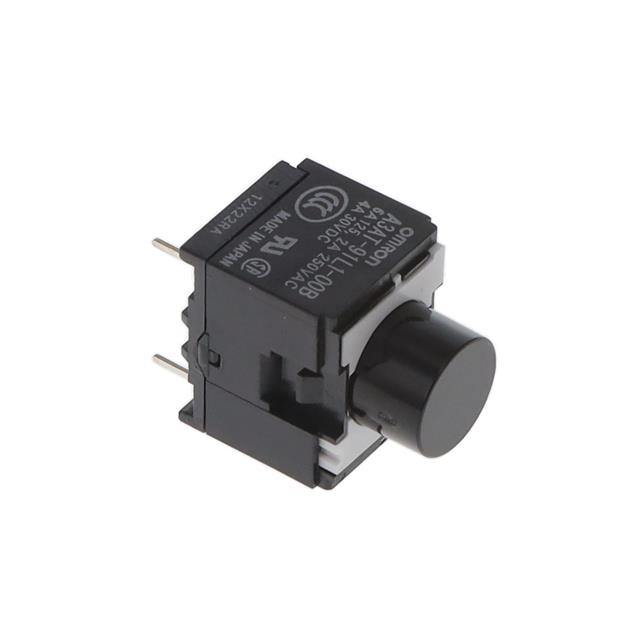

Omron Automation and Safety A3AT-91L1-00B	50000 Cycles	50000 Cycles	IP00	125 V	SPST-NO	Button Round	PC Pin	4 A 6 A	30 V	Through Hole	55 °C	-10 °C	Standard	No Marking	Black	Off-On
Omron Automation and Safety A3AT-91K1-00ER	1000000 Cycles	50000 Cycles	IP00	125 V	SPST-NO	Button Round	PC Pin	4 A 6 A	30 V	Through Hole	55 °C	-10 °C	Illuminated Standard	No Marking	Red	Off-Mom	LED Red	2 VDC
Omron Automation and Safety A3AT-91L1-00Y	50000 Cycles	50000 Cycles	IP00	125 V	SPST-NO	Button Round	PC Pin	4 A 6 A	30 V	Through Hole	55 °C	-10 °C	Standard	No Marking	Yellow	Off-On

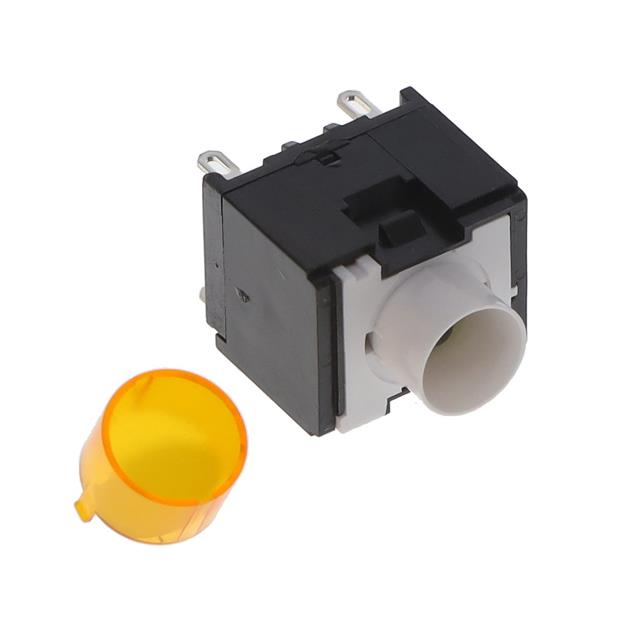

Omron Automation and Safety A3AT-90K1-00EY	1000000 Cycles	50000 Cycles	IP00	125 V	SPST-NO	Button Round	Solder Lug	4 A 6 A	30 V	Panel Mount Rear	55 °C	-10 °C	Illuminated Standard	No Marking	Yellow	Off-Mom	LED Yellow	2.1 VDC	11.5 mm
Omron Automation and Safety A3AT-91A1-00EG	1000000 Cycles	50000 Cycles	IP00	125 V	SPDT	Button Round	PC Pin	2 A 3 A	30 V	Through Hole	55 °C	-10 °C	Illuminated Standard	No Marking	Green	On-Mom	Green LED	2.1 VDC
Omron Automation and Safety A3AT-91L1-00A	50000 Cycles	50000 Cycles	IP00	125 V	SPST-NO	Button Round	PC Pin	4 A 6 A	30 V	Through Hole	55 °C	-10 °C	Standard	No Marking	Blue	Off-On
Omron Automation and Safety A3AT-91K1-00L	1000000 Cycles	50000 Cycles	IP00	125 V	SPST-NO	Button Round	PC Pin	4 A 6 A	30 V	Through Hole	55 °C	-10 °C	Standard	No Marking	Gray Light	Off-Mom
Omron Automation and Safety A3AT-90L1-00D	50000 Cycles	50000 Cycles	IP00	125 V	SPST-NO	Button Round	Solder Lug	4 A 6 A	30 V	Panel Mount Rear	55 °C	-10 °C	Standard	No Marking	Dark Gray	Off-On			11.5 mm
Omron Automation and Safety A3AT-90B1-00EG	50000 Cycles	50000 Cycles	IP00	125 V	SPDT	Button Round	Solder Lug	2 A 3 A	30 V	Panel Mount Rear	55 °C	-10 °C	Illuminated Standard	No Marking	Green	On-On	Green LED	2.1 VDC	11.5 mm

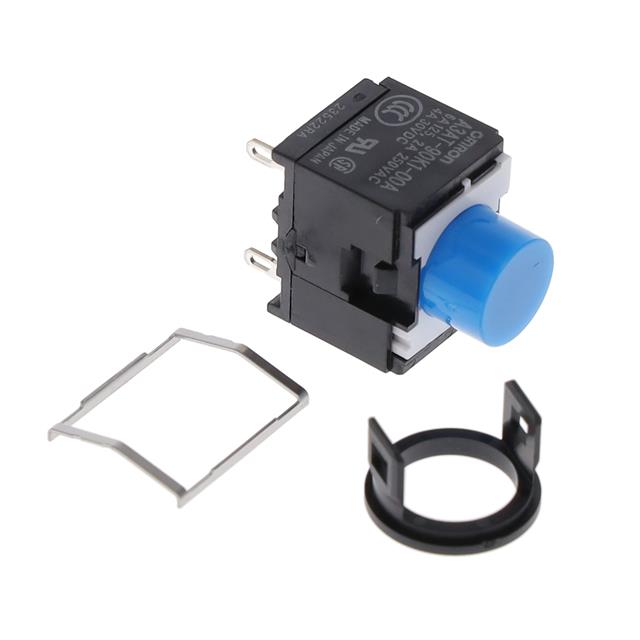

Omron Automation and Safety A3AT-90K1-00A	1000000 Cycles	50000 Cycles	IP00	125 V	SPST-NO	Button Round	Solder Lug	4 A 6 A	30 V	Panel Mount Rear	55 °C	-10 °C	Standard	No Marking	Blue	Off-Mom			11.5 mm
