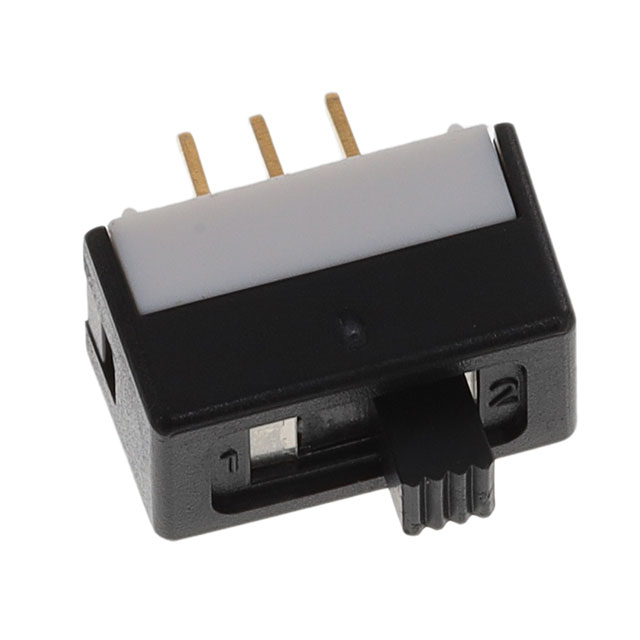

600SP1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE SPDT 0.4VA 20V
| Part | Switch Travel | Actuator Material | Mechanical Life | Electrical Life | Contact Timing | Switch Function | Actuator Type | Voltage Rating - AC | Voltage Rating - DC | Current Rating (Amps) | Actuator Length [x] | Contact Material | Features | Contact Finish | Mounting Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 4 mm | Polybutylene Terephthalate (PBT) | 20000 Cycles | 20000 Steps | Not Specified | On-On | Standard | 20 V | 20 V | 0.4 VA | 2.81 mm | Copper Alloy | Epoxy Sealed Terminals IP67 | Gold | Through Hole | SPDT | 80 °C | -40 C | PC Pin |
 E-Switch | 4 mm | Polybutylene Terephthalate (PBT) | 20000 Cycles | 20000 Steps | Not Specified | On-On | Standard | 20 V | 20 V | 0.4 VA | 2.3 mm | Copper Alloy | IP67 - Dust Tight Waterproof | Gold | Right Angle Through Hole | SPDT | 80 °C | -40 C | PC Pin |
E-Switch | 4 mm | Polybutylene Terephthalate (PBT) | 20000 Cycles | 20000 Steps | Not Specified | On-On | Standard | 20 V | 20 V | 0.4 VA | 2.81 mm | Copper Alloy | Epoxy Sealed Terminals IP67 | Gold | Through Hole | SPDT | 80 °C | -40 C | PC Pin |
E-Switch | 4 mm | Polybutylene Terephthalate (PBT) | 20000 Cycles | 20000 Steps | Not Specified | On-On | Standard | 30 V | 1 A | 2.81 mm | Copper Alloy | IP67 - Dust Tight Waterproof | Silver | Through Hole | SPDT | 80 °C | -40 C | PC Pin | |
E-Switch | 4 mm | Polybutylene Terephthalate (PBT) | 20000 Cycles | 20000 Steps | Not Specified | On-On | Standard | 30 V | 1 A | 2.3 mm | Copper Alloy | IP67 - Dust Tight Waterproof | Silver | Right Angle Through Hole | SPDT | 80 °C | -40 C | PC Pin |
